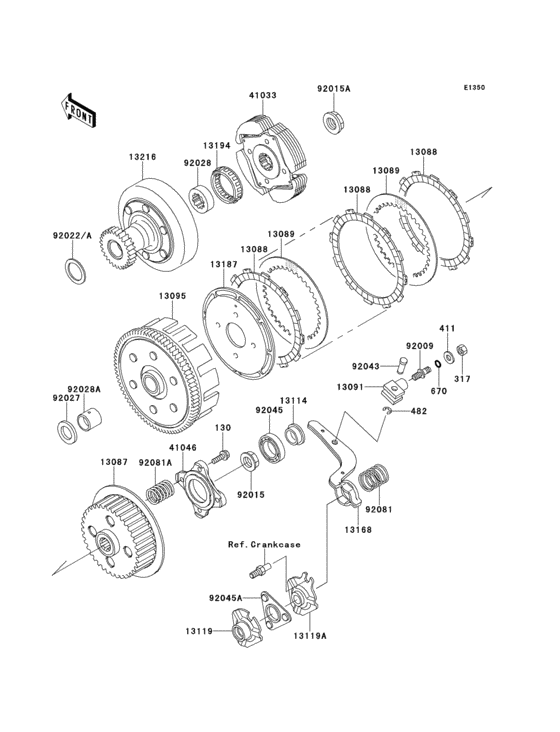

Clutch Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CA0620 BOLT-FLANGED,6X20 |
130CA0620 |
from US $1.11 |
||
|
317
|
317
317AA0800 NUT-HEX-SMALL |
317AA0800 |
from US $0.94 |
||
|
411
|
411
411AA0800 WASHER-PLAIN |
411AA0800 |
from US $0.72 |
||
|
482
|
482
482J6000 CIRCLIP-TYPE-E,6MM |
482J6000 |
from US $1.05 |
||
|
670
|
670
670B1508 O RING,8MM |
670B1508 |
from US $1.63 |
||
|
13087
|
13087
13087-1065 Hub-clutch |
13087-1065 |
from US $69.05 |
||
|
13088
|
13088
13088-1091 PLATE-FRICTION |
13088-1091 |
from US $16.39 |
||
|
13089
|
13089
13089-1005 PLATE,CLUTCH,STEEL |
13089-1005 |
from US $12.20 |
||
|
13091
|
13091
13091-1341 HOLDER,CLUTCH RELEASE |
13091-1341 |
from US $30.33 |
||
|
13095
|
13095
13095-1364
HOUSING-COMP-CLUTCH
|
13095-1364 |
— | ||
|
13114
|
13114
13114-1056 PUSHER-CLUTCH |
13114-1056 |
from US $14.31 |
||
|
13119
|
13119
13119-1054 CAM-RELEASE |
13119-1054 |
US $31.61 |
||
|
13119A
|
13119A
13119-1060 CAM-RELEASE |
13119-1060 |
US $34.04 |
||
| replacement | |||||
|
13119A
|
13119A
13119-1074 CAM-RELEASE |
13119-1074 |
from US $34.04 |
||
|
13168
|
13168
13168-1263 LEVER,CLUTCH RELEASE |
13168-1263 |
from US $23.79 |
||
|
13187
|
13187
13187-1081 PLATE-CLUTCH OPERATIN |
13187-1081 |
from US $46.20 |
||
|
13194
|
13194
13194-1055 CLUTCH-ONEWAY |
13194-1055 |
from US $80.71 |
||
|
13216
|
13216
13216-1073
GEAR-COMP,CLUTCH,FR
|
13216-1073 |
— | ||
|
41033
|
41033
41036-1286 HUB-ASSY,CLUTCH,FR |
41036-1286 |
from US $362.88 |
||
|
41046
|
41046
41046-1063 HOUSING-BEARING |
41046-1063 |
from US $37.48 |
||
|
92009
|
92009
92009-1303 SCREW,CLUTCH RELEASE |
92009-1303 |
from US $7.16 |
||
|
92015
|
92015
92015-1465 NUT |
92015-1465 |
from US $11.40 |
||
|
92015A
|
92015A
92015-1512 NUT,18MM |
92015-1512 |
from US $11.88 |
||
|
92022
|
92022
92022-1683 WASHER,27.3X38X1.5 |
92022-1683 |
US $4.23 |
||
|
92027
|
92027
92027-1888 COLLAR,20.5X34X4 |
92027-1888 |
from US $10.73 |
||
|
92028
|
92028
92028-1370 BUSHING |
92028-1370 |
from US $23.33 |
||
|
92028A
|
92028A
92028-1371 BUSHING,CLUTCH |
92028-1371 |
from US $16.65 |
||
|
92043
|
92043
92043-1230 PIN,CLUTCH RELEASE |
92043-1230 |
from US $7.16 |
||
|
92045
|
92045
92045-036 BEARING,BALL,#6905 |
92045-036 |
from US $21.38 |
||
|
92045A
|
92045A
14020-1093 RETAINER,CLUTCH RELEA |
14020-1093 |
from US $13.38 |
||
|
92081
|
92081
92081-1681 SPRING,SHOCKABSORBER, |
92081-1681 |
from US $4.05 |
||
|
92081A
|
92081A
92081-1848 SPRING,CLUTCH |
92081-1848 |
from US $5.44 |
||
