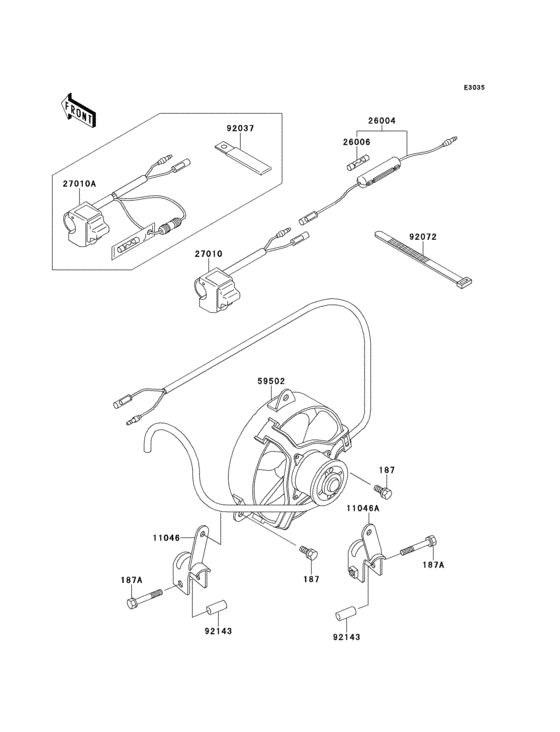

Cooling Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187J0616 BOLT-UPSET-WSP |
187J0616 |
US $0.92 |
||
| replacement | |||||
|
187
|
187
187BB0616 BOLT-UPSET-WSP |
187BB0616 |
from US $0.92 |
||
|
187A
|
187A
187J0640
Bolt-upset-wsp
|
187J0640 |
— | ||
|
11046
|
11046
11046-1242 Bracket,fan,lh |
11046-1242 |
US $13.06 |
||
|
11046A
|
11046A
11046-1243 Bracket,fan,rh |
11046-1243 |
US $13.06 |
||
|
26004
|
26004
26004-1077
Fuse-assy
|
26004-1077 |
— | ||
|
26006
|
26006
26006-1002 FUSE,GLASS TUBE,6.4X3 |
26006-1002 |
from US $3.33 |
||
|
27010
|
27010
27010-1250 SWITCH,FAN |
27010-1250 |
US $60.34 |
||
|
59502
|
59502
59502-1078 Fan-assy,cooling |
59502-1078 |
US $564.54 |
||
|
92072
|
92072
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92143
|
92143
92143-1225 Collar,6.8x10x21.7 |
92143-1225 |
US $3.27 |
||
