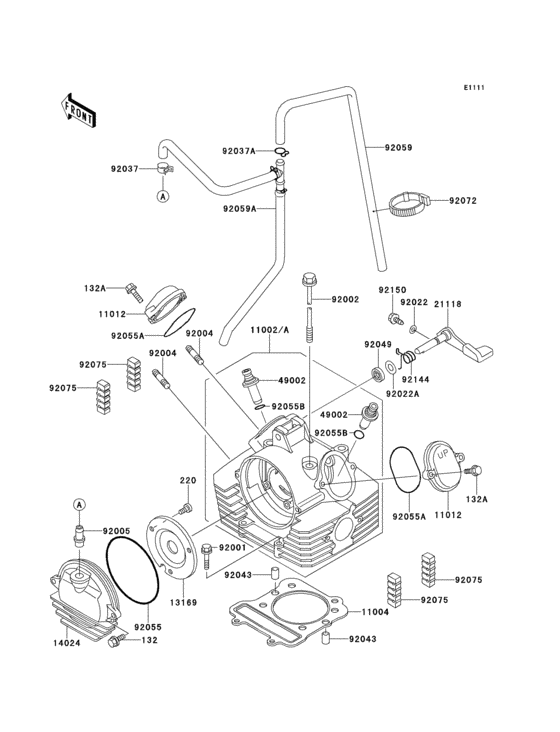

Cylinder head Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BD0616 BOLT-FLANGED-SMALL |
132BD0616 |
from US $1.11 |
||
|
132A
|
132A
92150-1773 BOLT,6X25 |
92150-1773 |
from US $3.96 |
||
|
220
|
220
220AA0610 SCREW-PAN HEAD,6X10 |
220AA0610 |
from US $0.95 |
||
|
11002
|
11002
11002-5041 HEAD-ASSY-CYLINDER |
11002-5041 |
US $687.96 |
||
|
11004
|
11004
11004-1340 GASKET-HEAD |
11004-1340 |
US $52.65 |
||
|
11012
|
11012
11012-1486 CAP,ROCKER ARM |
11012-1486 |
from US $18.04 |
||
|
13169
|
13169
13169-1961 PLATE,CAMSHAFT COVER |
13169-1961 |
from US $8.55 |
||
|
14024
|
14024
14024-1060 COVER,CAMSHAFT |
14024-1060 |
from US $46.20 |
||
|
21118
|
21118
21118-1062 DECOMPRESSOR,LEVER |
21118-1062 |
from US $23.49 |
||
|
49002
|
49002
49002-1092 GUIDE-VALVE |
49002-1092 |
from US $20.06 |
||
|
92001
|
92001
92003-229 BOLT,6X32 |
92003-229 |
from US $5.28 |
||
|
92002
|
92002
92002-1515
BOLT,8X233
|
92002-1515 |
— | ||
|
92004
|
92004
92004-1121 STUD,8X30 |
92004-1121 |
from US $3.17 |
||
|
92005
|
92005
92005-1124 FITTING,BREATHER PIPE |
92005-1124 |
from US $12.12 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1 |
92022-077 |
from US $2.53 |
||
|
92022A
|
92022A
92022-1649 WASHER,10.2X20X0.5 |
92022-1649 |
from US $2.69 |
||
|
92037
|
92037
92037-1181 CLAMP |
92037-1181 |
from US $3 |
||
|
92037A
|
92037A
92037-1271 CLAMP,FUEL TUBE |
92037-1271 |
from US $3.50 |
||
|
92043
|
92043
92043-1264 PIN,DOWEL,8.2X10X14 |
92043-1264 |
from US $1 |
||
|
92049
|
92049
92049-1542 SEAL-OIL |
92049-1542 |
from US $6.57 |
||
|
92055
|
92055
92055-107 O RING,99M/M |
92055-107 |
from US $10.83 |
||
|
92055A
|
92055A
92055-112 O-RING,53.5MM |
92055-112 |
from US $4.80 |
||
|
92055B
|
92055B
92055-1265 RING-O,11.7MM |
92055-1265 |
from US $7.13 |
||
|
92059
|
92059
92059-1511 TUBE |
92059-1511 |
from US $17.42 |
||
|
92059A
|
92059A
92059-1787 TUBE |
92059-1787 |
from US $20.84 |
||
|
92072
|
92072
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92075
|
92075
92075-1657 DAMPER |
92075-1657 |
from US $9.66 |
||
|
92144
|
92144
92144-1154 SPRING,DECOMPRESSOR |
92144-1154 |
from US $3.27 |
||
|
92150
|
92150
92002-1962 BOLT,FLANGED-SMALL,6X |
92002-1962 |
from US $3.57 |
