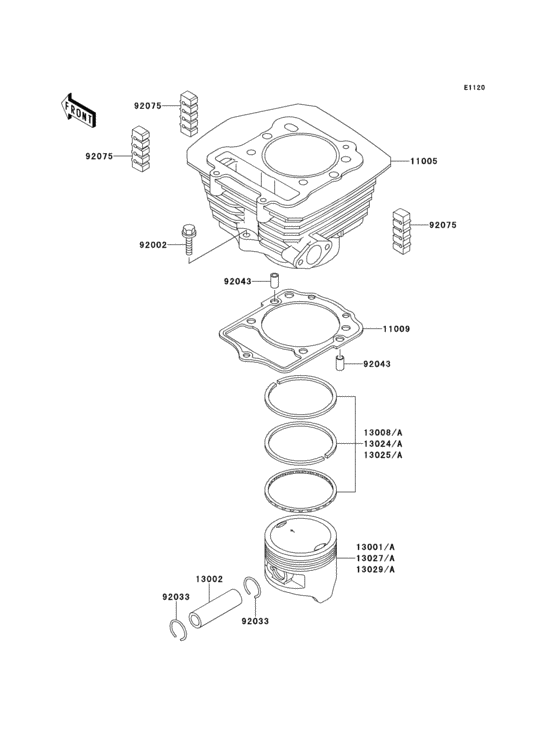

Cylinder/piston Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11005
|
11005
11005-1533 CYLINDER-ENGINE |
11005-1533 |
from US $584.76 |
||
|
11009
|
11009
11060-1652 GASKET,CYLINDER BASE |
11060-1652 |
from US $13.26 |
||
|
13001
|
13001
13001-1244 PISTON-ENGINE,STD |
13001-1244 |
US $112.59 |
||
|
13002
|
13002
13002-1059 PIN-PISTON |
13002-1059 |
US $25.55 |
||
|
13008
|
13008
13008-1068
RING-SET-PISTON,STD
|
13008-1068 |
— | ||
|
13024
|
13024
13024-1064 RING-SET PISTON LL,O/ |
13024-1064 |
US $62.05 |
||
|
13025
|
13025
13025-1067 RING-SET PISTON L,O/S |
13025-1067 |
US $74.43 |
||
|
13027
|
13027
13027-1141 PISTON-ENGINE LL,O/S, |
13027-1141 |
US $112.59 |
||
|
13029
|
13029
13029-1153 PISTON-ENGINE L,O/S,0 |
13029-1153 |
US $112.59 |
||
|
92002
|
92002
92002-1105 BOLT,6X28 |
92002-1105 |
from US $2.95 |
||
|
92033
|
92033
92033-1099 RING-SNAP,18MM |
92033-1099 |
from US $0.80 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92075
|
92075
92075-1657 DAMPER |
92075-1657 |
from US $9.66 |
