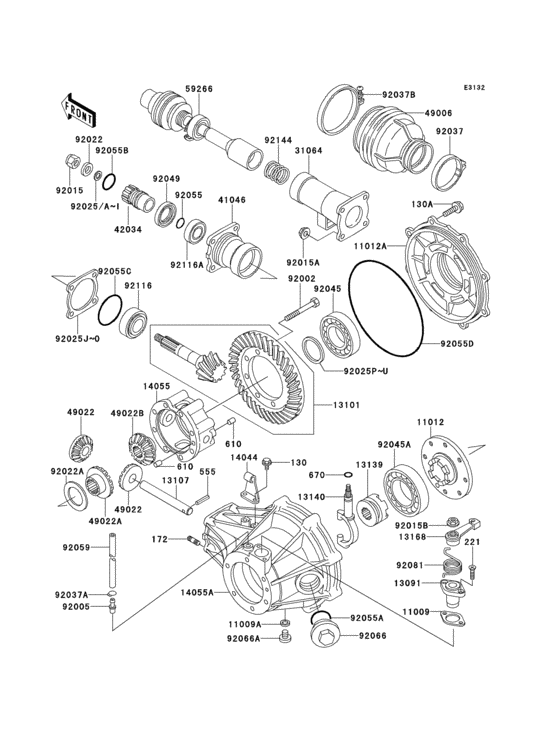

Drive shaft/final gear(1/2) Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
130A
|
130A
130BA0825 BOLT-FLANGED,8X25 |
130BA0825 |
from US $1.27 |
||
|
172
|
172
92004-1214 STUD |
92004-1214 |
from US $3.17 |
||
| replacement | |||||
|
172
|
172
172BA0825 STUD |
172BA0825 |
from US $2.95 |
||
|
221
|
221
221AA0618 SCREW,6X18 |
221AA0618 |
from US $0.95 |
||
|
555
|
555
555A0528 PIN-SPRING |
555A0528 |
from US $2.65 |
||
|
610
|
610
610A0812 PIN-DOWEL,8X12 |
610A0812 |
from US $0.94 |
||
|
670
|
670
670B2010 0 RING, 10MM |
670B2010 |
from US $1.87 |
||
|
11009
|
11009
11009-1521 GASKET |
11009-1521 |
US $3.35 |
||
|
11009A
|
11009A
92065-058 GASKET |
92065-058 |
from US $3.37 |
||
|
11012
|
11012
11012-1444 CAP,BEVEL GEAR |
11012-1444 |
from US $185.07 |
||
|
11012A
|
11012A
11012-1614 CAP,DIFFERENTIAL CASE |
11012-1614 |
from US $124.26 |
||
|
13091
|
13091
13091-1375 HOLDER |
13091-1375 |
from US $63.45 |
||
|
13101
|
13101
13101-5054 GEAR-ASSY,DIFFERENTIA |
13101-5054 |
from US $622.08 |
||
|
13107
|
13107
13107-1149 SHAFT,BEVEL GEAR |
13107-1149 |
from US $23.33 |
||
|
13139
|
13139
13139-1055 SHIFTER |
13139-1055 |
from US $80.71 |
||
|
13140
|
13140
13140-1259 FORK-SHIFT,DIFF LOCK |
13140-1259 |
from US $68.59 |
||
|
13168
|
13168
13168-1268 LEVER |
13168-1268 |
from US $18.50 |
||
|
14044
|
14044
14044-1058 HOLDER-CABLE,DIFFEREN |
14044-1058 |
from US $7 |
||
|
14055
|
14055
14055-1072 CASE-GEAR,BEVEL |
14055-1072 |
from US $160.19 |
||
|
14055A
|
14055A
14055-1082 CASE-GEAR |
14055-1082 |
from US $374.80 |
||
|
31064
|
31064
31064-1093 PIPE-COMP |
31064-1093 |
from US $115.24 |
||
|
41046
|
41046
41046-1065 HOUSING-BEARING |
41046-1065 |
from US $132.81 |
||
|
42034
|
42034
42034-1078 COUPLING,DIFFERENTIAL |
42034-1078 |
from US $93.31 |
||
|
49006
|
49006
49006-1237 BOOT,DRIVE SHAFT |
49006-1237 |
from US $26.55 |
||
|
49022
|
49022
49022-1105 GEAR-BEVEL,10T |
49022-1105 |
from US $61.75 |
||
|
49022A
|
49022A
49022-1104 GEAR-BEVEL,OD=35,16T |
49022-1104 |
from US $63.45 |
||
|
49022B
|
49022B
49022-1106 GEAR-BEVEL,OD=30,16T |
49022-1106 |
from US $63.45 |
||
|
59266
|
59266
59266-1070
JOINT-BALL
|
59266-1070 |
— | ||
|
92002
|
92002
92002-1553 BOLT,8X68 |
92002-1553 |
from US $6.06 |
||
|
92005
|
92005
92005-1127 FITTING,BREATHER |
92005-1127 |
from US $11.88 |
||
|
92015
|
92015
92015-1182 NUT,12MM |
92015-1182 |
from US $4.44 |
||
|
92015A
|
92015A
92015-1402 NUT,8MM |
92015-1402 |
from US $2.85 |
||
|
92015B
|
92015B
92015-1406 NUT,8MM |
92015-1406 |
from US $2.85 |
||
|
92022
|
92022
92022-1293 WASHER,12X3X25X3.2 |
92022-1293 |
from US $3.96 |
||
|
92022A
|
92022A
92200-1045 WASHER,35.5X54X1.0 |
92200-1045 |
from US $7.46 |
||
|
92025
|
92025
92025-1282 SHIM,12.5X17X1.30 |
92025-1282 |
from US $7.76 |
||
|
92025A
|
92025A
92025-1287 SHIM,12.5X17X0.1 |
92025-1287 |
from US $4.28 |
||
|
92025B
|
92025B
92025-1288 SHIM,12.5X17X0.2 |
92025-1288 |
from US $4.28 |
||
|
92025C
|
92025C
92025-1289 SHIM,12X5X17X0.3 |
92025-1289 |
from US $4.28 |
||
|
92025D
|
92025D
92025-1290 SHIM,12.5X17X0.5 |
92025-1290 |
from US $5.07 |
||
|
92025E
|
92025E
92025-1291 SHIM,12.5X17X0.6 |
92025-1291 |
from US $6.65 |
||
|
92025F
|
92025F
92025-1292 SHIM,12.5X17X0.7 |
92025-1292 |
from US $6.65 |
||
|
92025G
|
92025G
92025-1293 SHIM,12.5X17X0.8 |
92025-1293 |
from US $6.65 |
||
|
92025H
|
92025H
92025-1294 SHIM,12.5X17X0.9 |
92025-1294 |
from US $6.65 |
||
|
92025I
|
92025I
92025-1295 SHIM,12.5X17X1.0 |
92025-1295 |
from US $6.65 |
||
|
92025J
|
92025J
92025-1703 SHIM,T=0.10 |
92025-1703 |
from US $3.57 |
||
|
92025K
|
92025K
92025-1704 SHIM,T=0.15 |
92025-1704 |
from US $3.57 |
||
|
92025L
|
92025L
92025-1705 SHIM,T=0.50 |
92025-1705 |
from US $5.44 |
||
|
92025M
|
92025M
92025-1706 SHIM,T=0.80 |
92025-1706 |
from US $3.57 |
||
|
92025N
|
92025N
92025-1707 SHIM,T=1.00 |
92025-1707 |
from US $3.57 |
||
|
92025O
|
92025O
92025-1708 SHIM,T=1.20 |
92025-1708 |
from US $3.57 |
||
|
92025P
|
92025P
92025-1709 SHIM,40.5X50X0.10 |
92025-1709 |
from US $8.09 |
||
|
92025Q
|
92025Q
92025-1710 SHIM,40.5X50X0.15 |
92025-1710 |
from US $3.89 |
||
|
92025R
|
92025R
92025-1711 SHIM,40.5X50X0.50 |
92025-1711 |
from US $3.89 |
||
|
92025S
|
92025S
92025-1712 SHIM,40.5X50X0.80 |
92025-1712 |
from US $3.89 |
||
|
92025T
|
92025T
92025-1713 SHIM,40.5X50X1.00 |
92025-1713 |
from US $3.89 |
||
|
92025U
|
92025U
92025-1714 SHIM,40.5X50X1.20 |
92025-1714 |
from US $3.89 |
||
|
92037
|
92037
92037-1523 CLAMP |
92037-1523 |
from US $8.08 |
||
|
92037A
|
92037A
92037-1610 CLAMP |
92037-1610 |
from US $1.74 |
||
|
92037B
|
92037B
92037-1654 CLAMP |
92037-1654 |
from US $9.03 |
||
|
92045
|
92045
92045-1145 BEARING-BALL,6208CM |
92045-1145 |
from US $37.17 |
||
|
92045A
|
92045A
92045-1213 BEARING-BALL |
92045-1213 |
from US $44.78 |
||
|
92049
|
92049
92049-1231 SEAL-OIL |
92049-1231 |
from US $8.87 |
||
|
92055
|
92055
92055-022 0 RING |
92055-022 |
from US $3.48 |
||
|
92055A
|
92055A
92055-1005 O RING,VLV ADJUST |
92055-1005 |
from US $3.80 |
||
|
92055B
|
92055B
92055-1119 RING-0,27MM |
92055-1119 |
from US $3.33 |
||
|
92055C
|
92055C
92055-1296 RING-O,54.8MM |
92055-1296 |
from US $4.98 |
||
|
92055D
|
92055D
92055-1297 RING-O,179.8MM |
92055-1297 |
from US $9.17 |
||
|
92059
|
92059
92059-1939 TUBE |
92059-1939 |
from US $10.43 |
||
|
92066
|
92066
92066-1006-7J PLUG,OIL FILLER CAP,M |
92066-1006-7J |
from US $11.09 |
||
|
92066A
|
92066A
92067-001 PLUG, OIL DRAIN |
92067-001 |
from US $3.73 |
||
|
92081
|
92081
92081-1853 SPRING |
92081-1853 |
from US $5.13 |
||
|
92116
|
92116
92116-1005 BEARING-ROLLER,4T-CR- |
92116-1005 |
from US $27.84 |
||
|
92116A
|
92116A
92116-1010 BEARING-ROLLER,4T3200 |
92116-1010 |
from US $21.54 |
||
|
92144
|
92144
92144-1235 SPRING |
92144-1235 |
from US $4.05 |
||
