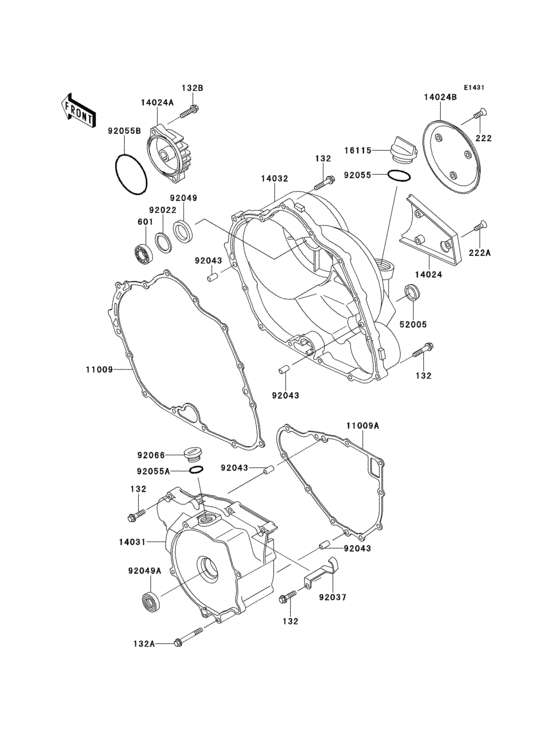

Engine cover Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
92150-1021 BOLT,6X30 |
92150-1021 |
from US $3.37 |
||
| replacement | |||||
|
132
|
132
132BB0630 BOLT,6X30 |
132BB0630 |
from US $2.69 |
||
|
132A
|
132A
92002-1568 BOLT,6X80 |
92002-1568 |
from US $3.48 |
||
| replacement | |||||
|
132A
|
132A
132BB0680 BOLT,6X80 |
132BB0680 |
from US $3.48 |
||
|
132B
|
132B
92150-1773 BOLT,6X25 |
92150-1773 |
from US $3.96 |
||
|
222
|
222
222AB0512 SCREW-CSK-RD-CROS |
222AB0512 |
from US $0.94 |
||
|
222A
|
222A
222AB0518 SCREW-CSK-RD-CROS |
222AB0518 |
from US $0.94 |
||
|
601
|
601
601B6202 BEARING BALL #6202 |
601B6202 |
from US $10.03 |
||
|
11009
|
11009
11060-1655 GASKET,CLUTCH COVER |
11060-1655 |
US $26.98 |
||
|
11009A
|
11009A
11060-1656 GASKET,GENERATOR COVR |
11060-1656 |
US $10.18 |
||
|
14024
|
14024
14024-1061 COVER,RELEASE ADJUSTE |
14024-1061 |
from US $27.37 |
||
|
14024A
|
14024A
14024-1062 COVER,OIL FILTER |
14024-1062 |
from US $34.83 |
||
|
14024B
|
14024B
14025-1807 COVER,CLUTCH COVER |
14025-1807 |
from US $24.11 |
||
|
14031
|
14031
14031-1339 Cover-generator |
14031-1339 |
from US $135.38 |
||
|
14032
|
14032
14032-1433 COVER-CLUTCH |
14032-1433 |
US $334.37 |
||
|
16115
|
16115
16115-1009 CAP-OIL FILLER |
16115-1009 |
from US $10.14 |
||
|
52005
|
52005
52005-1009 GAUGE,OIL LEVEL |
52005-1009 |
from US $13.15 |
||
|
92022
|
92022
92022-1109 WASHER,25.3X33X1.0 |
92022-1109 |
from US $3.48 |
||
|
92037
|
92037
92037-1872 CLAMP |
92037-1872 |
from US $3.89 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92049
|
92049
92049-1158 SEAL-OIL,SCY 15X30X7 |
92049-1158 |
from US $15.52 |
||
|
92049A
|
92049A
92049-1317 SEAL-OIL |
92049-1317 |
from US $7.93 |
||
|
92055
|
92055
92055-049 O-RING,31MM |
92055-049 |
from US $3.37 |
||
|
92055A
|
92055A
92055-1146 RING-O |
92055-1146 |
from US $6.57 |
||
|
92055B
|
92055B
92055-1433 RING-O |
92055-1433 |
from US $6.06 |
||
|
92066
|
92066
92066-1163 PLUG,COVER,LH |
92066-1163 |
from US $9.35 |
||
