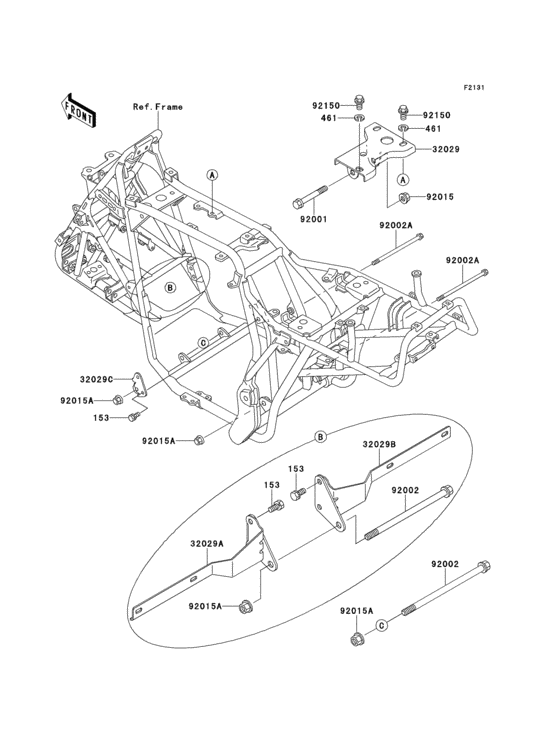

Frame fitting Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
153
|
153
153J0818 BOLT-WS-SMALL,8X18 |
153J0818 |
US $2.43 |
||
| replacement | |||||
|
153
|
153
183BB0818 BOLT-UPSET-WS-SMALL |
183BB0818 |
from US $1.24 |
||
|
461
|
461
461DB0800 WASHER-SPRING,8MM,BLA |
461DB0800 |
from US $0.78 |
||
|
32029
|
32029
32029-1569 BRACKET-ENGINE,TOP |
32029-1569 |
from US $66.41 |
||
|
32029A
|
32029A
32029-1594 BRACKET-ENGINE,LH |
32029-1594 |
from US $66.41 |
||
|
32029B
|
32029B
32029-1595 BRACKET-ENGINE,RH |
32029-1595 |
from US $66.41 |
||
|
32029C
|
32029C
32029-1597 BRACKET-ENGINE |
32029-1597 |
from US $27.99 |
||
|
92001
|
92001
92001-1615 BOLT,FLANGED,8X60 |
92001-1615 |
from US $4.12 |
||
|
92002
|
92002
92002-1546 BOLT,FLANGED,10X180 |
92002-1546 |
from US $9.17 |
||
|
92002A
|
92002A
92002-1548 BOLT,FLANGED,10X190 |
92002-1548 |
from US $9.35 |
||
|
92015
|
92015
92015-1432 NUT,8MM |
92015-1432 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1727 NUT |
92015-1727 |
from US $2.69 |
||
|
92150
|
92150
92150-1066 BOLT,FLANGED,8X14 |
92150-1066 |
from US $2.79 |
||
