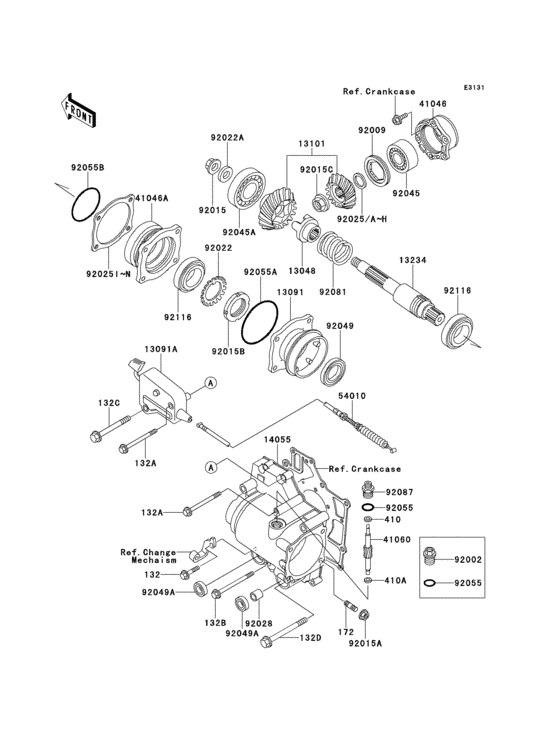

Front bevel gear(1/2) Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
92150-1021 BOLT,6X30 |
92150-1021 |
from US $3.37 |
||
| replacement | |||||
|
132
|
132
132BB0630 BOLT,6X30 |
132BB0630 |
from US $2.69 |
||
|
132A
|
132A
132J0675 BOLT-FLANGED-SMALL |
132J0675 |
from US $1.90 |
||
| replacement | |||||
|
132A
|
132A
132BB0675 BOLT-FLANGED-SMALL |
132BB0675 |
from US $1.43 |
||
|
132B
|
132B
132J0685 BOLT-FLANGED-SMALL,6X |
132J0685 |
US $3.76 |
||
| replacement | |||||
|
132B
|
132B
132BB0685 BOLT-FLANGED-SMALL,6X |
132BB0685 |
from US $1.27 |
||
|
132C
|
132C
132BB0875 BOLT-FLANGED-SMALL |
132BB0875 |
from US $1.71 |
||
|
132D
|
132D
132J0890 BOLT-FLANGED-SMALL |
132J0890 |
from US $3.17 |
||
| replacement | |||||
|
132D
|
132D
132BB0890 BOLT-FLANGED-SMALL |
132BB0890 |
from US $2.33 |
||
|
172
|
172
92004-1214 STUD |
92004-1214 |
from US $3.17 |
||
| replacement | |||||
|
172
|
172
172BA0825 STUD |
172BA0825 |
from US $2.95 |
||
|
410
|
410
410AA0500 W-PLAIN-S |
410AA0500 |
from US $0.78 |
||
|
410A
|
410A
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
13048
|
13048
13048-1059 CAM-DAMPER,FR |
13048-1059 |
from US $48.99 |
||
|
13091
|
13091
13091-1377
HOLDER,GEAR CASE,FR
|
13091-1377 |
— | ||
|
13091A
|
13091A
13091-1410 HOLDER,DIFF LOCK |
13091-1410 |
from US $126.59 |
||
|
13101
|
13101
13101-5080 Gear-assy,front bevel |
13101-5080 |
US $622.08 |
||
|
13234
|
13234
13234-1085 SHAFT-COMP,GEAR CASE, |
13234-1085 |
from US $163.30 |
||
|
14055
|
14055
14055-1120 CASE-GEAR |
14055-1120 |
US $473.31 |
||
| replacement | |||||
|
14055
|
14055
14055-1125 CASE-GEAR |
14055-1125 |
from US $473.31 |
||
|
41046
|
41046
41046-1098 HOUSING-BEARING,GEAR |
41046-1098 |
from US $86.16 |
||
|
41046A
|
41046A
41046-1066 HOUSING-BEARING,GEAR |
41046-1066 |
from US $124.26 |
||
|
41060
|
41060
41060-1113 GEAR-METER SCREW |
41060-1113 |
from US $30.83 |
||
|
54010
|
54010
54010-1069 CABLE |
54010-1069 |
from US $24.88 |
||
|
92009
|
92009
92009-1384 SCREW,55MM |
92009-1384 |
from US $17.73 |
||
|
92015
|
92015
92015-1341 NUT,FLANGED,14MM |
92015-1341 |
from US $12.12 |
||
|
92015A
|
92015A
92015-1402 NUT,8MM |
92015-1402 |
from US $2.85 |
||
|
92015B
|
92015B
92015-1515 NUT,RING 35MM |
92015-1515 |
US $17.42 |
||
|
92015C
|
92015C
92015-1581 NUT |
92015-1581 |
from US $12.20 |
||
|
92022
|
92022
92022-1687 WASHER,LOCK |
92022-1687 |
US $5.13 |
||
|
92022A
|
92022A
92022-1688 WASHER,14.2X28X2.6 |
92022-1688 |
from US $3.89 |
||
|
92025
|
92025
92025-1533 SHIM,20.3X28X1.3 |
92025-1533 |
from US $3.73 |
||
|
92025A
|
92025A
92025-1534 SHIM,20.3X28X0.7 |
92025-1534 |
from US $2.95 |
||
|
92025B
|
92025B
92180-0288 SHIM,20.3X28X0.8 |
92180-0288 |
from US $2.95 |
||
|
92025C
|
92025C
92180-0289 SHIM,20.3X28X0.9 |
92180-0289 |
from US $4.67 |
||
|
92025D
|
92025D
92180-0290 SHIM,20.3X28X1.0 |
92180-0290 |
from US $2.95 |
||
|
92025E
|
92025E
92025-1538 SHIM,20.3X28X1.2 |
92025-1538 |
US $3.98 |
||
| replacement | |||||
|
92025E
|
92025E
92180-0291 SHIM,20.3X28X1.2 |
92180-0291 |
from US $2.95 |
||
|
92025F
|
92025F
92025-1573 SHIM,20.3X28X0.15 |
92025-1573 |
from US $3.33 |
||
|
92025G
|
92025G
92025-1574 SHIM,20.3X28X0.20 |
92025-1574 |
from US $3.33 |
||
|
92025H
|
92025H
92025-1575 SHIM,20.3X28X1.1 |
92025-1575 |
from US $2.95 |
||
|
92025I
|
92025I
92025-1697 SHIM,T=0.10 |
92025-1697 |
US $3.57 |
||
|
92025J
|
92025J
92025-1698 SHIM,T=0.15 |
92025-1698 |
from US $3.57 |
||
|
92025K
|
92025K
92025-1699 SHIM,T=0.50 |
92025-1699 |
from US $3.57 |
||
|
92025L
|
92025L
92025-1700 SHIM,T=0.80 |
92025-1700 |
from US $3.89 |
||
|
92025M
|
92025M
92025-1701 SHIM,T=1.00 |
92025-1701 |
from US $4.05 |
||
|
92025N
|
92025N
92025-1702 SHIM,T=1.20 |
92025-1702 |
from US $4.82 |
||
|
92028
|
92028
92028-1347 BUSHING |
92028-1347 |
from US $5.54 |
||
|
92045
|
92045
92045-1144 BEARING-BALL,5304 |
92045-1144 |
from US $73.41 |
||
|
92045A
|
92045A
92045-1155 BEARING-BALL,6206CM |
92045-1155 |
from US $18.50 |
||
|
92049
|
92049
92050-057 OIL SEAL,TB30508 |
92050-057 |
from US $12.90 |
||
|
92049A
|
92049A
92050-082 OIL SEAL,CHANGE SHAFT |
92050-082 |
from US $5.54 |
||
|
92055
|
92055
92055-1141 RING-O,ID=13.8 |
92055-1141 |
from US $2.53 |
||
|
92055A
|
92055A
92055-1213 RING-O,76MM |
92055-1213 |
from US $6.34 |
||
|
92055B
|
92055B
92055-1316 RING-O |
92055-1316 |
from US $4.05 |
||
|
92081
|
92081
92081-1854 SPRING,DAMPER |
92081-1854 |
US $22.49 |
||
|
92087
|
92087
92087-1054 BUSHING-METER GEAR |
92087-1054 |
from US $22.55 |
||
|
92116
|
92116
92116-1055 BEARING-ROLLER |
92116-1055 |
from US $24.42 |
||
