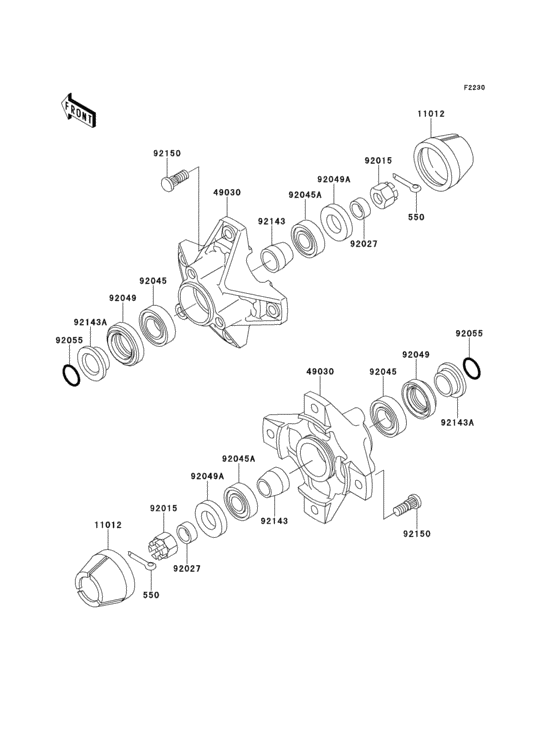

Front hub Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550AA4030 PIN-COTTER,4.0X30 |
550AA4030 |
from US $0.94 |
||
|
11012
|
11012
11012-1969 CAP,WHEEL |
11012-1969 |
from US $5.33 |
||
|
49030
|
49030
49030-1088 HUB,FR |
49030-1088 |
from US $104.04 |
||
|
92015
|
92015
92015-1947 NUT |
92015-1947 |
from US $6.34 |
||
|
92027
|
92027
92027-1815 COLLAR,16.2X22X9 |
92027-1815 |
from US $6.68 |
||
|
92045
|
92045
92045-1170 BEARING-BALL,60/222RS |
92045-1170 |
from US $22.87 |
||
|
92045A
|
92045A
601B6203UU BEARING-BALL,#6203UUC |
601B6203UU |
from US $18.85 |
||
|
92049
|
92049
92049-1260 SEAL-OIL,SDD4 28 44 8 |
92049-1260 |
US $13.59 |
||
|
92049A
|
92049A
92049-1318 SEAL-OIL |
92049-1318 |
from US $5.39 |
||
|
92055
|
92055
92055-1293 RING-O |
92055-1293 |
from US $3.01 |
||
|
92143
|
92143
92143-1007 COLLAR,L=25 |
92143-1007 |
US $21.69 |
||
|
92143A
|
92143A
92143-1008 COLLAR,L=14.1 |
92143-1008 |
US $39.19 |
||
|
92150
|
92150
92150-1289 BOLT |
92150-1289 |
from US $3.11 |
