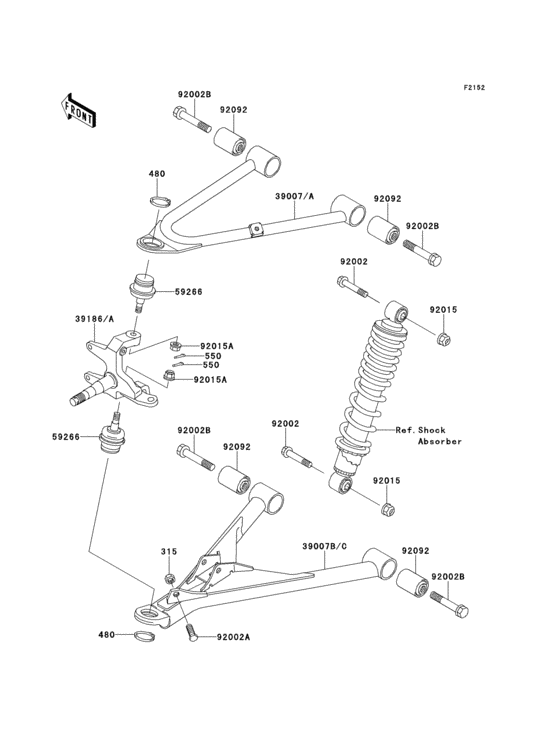

Front suspension Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
315
|
315
315BB1000 NUT-HEX-FINE |
315BB1000 |
from US $1.09 |
||
|
480
|
480
480J3200 CIRCRIP-TYPE-C |
480J3200 |
from US $1.43 |
||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
39007
|
39007
39007-1140 ARM-SUSP,FRT,LH,UPPER |
39007-1140 |
from US $76.25 |
||
|
39007A
|
39007A
39007-1141 ARM-SUSP,FRT,RH-UPPER |
39007-1141 |
from US $76.25 |
||
|
39007B
|
39007B
39007-1142 ARM-SUSP,FR,LH,LWR |
39007-1142 |
from US $127.80 |
||
|
39007C
|
39007C
39007-1143 ARM-SUSP-FRT,RH,LWR |
39007-1143 |
from US $127.80 |
||
|
39186
|
39186
39186-1083 KNUCKLE,LH |
39186-1083 |
from US $200.62 |
||
|
39186A
|
39186A
39186-1084 KNUCKLE,RH |
39186-1084 |
from US $200.62 |
||
|
59266
|
59266
59266-1060 JOINT-BALL |
59266-1060 |
from US $63.45 |
||
|
92002
|
92002
92002-1529 BOLT,FLANGED,10X53.5 |
92002-1529 |
from US $5.70 |
||
|
92002A
|
92002A
92002-1559 BOLT,8X30 |
92002-1559 |
from US $6.38 |
||
|
92002B
|
92002B
92002-1861 BOLT,FLANGED,12X67 |
92002-1861 |
from US $7.44 |
||
|
92015
|
92015
92015-1597 NUT,LOCK,10MM |
92015-1597 |
from US $7.04 |
||
|
92015A
|
92015A
92015-1717 NUT,LOCK,FLANGED,10MM |
92015-1717 |
from US $6.34 |
||
|
92092
|
92092
92092-1065 BUSHING-RUBBER |
92092-1065 |
from US $8.55 |
