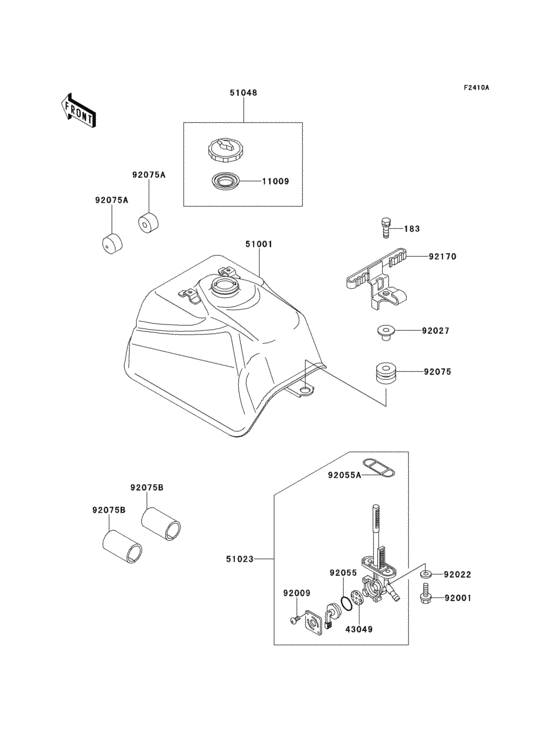

Fuel tank(eu,uk)(1/2) Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
183
|
183
183D0835 BOLT-UPSET-WS-SMALL |
183D0835 |
US $3.35 |
||
|
11009
|
11009
51059-006
GASKET,FUEL TANK CAP
|
51059-006 |
— | ||
|
43049
|
43049
43049-1017 PACKING,FUEL TAP VALV |
43049-1017 |
from US $5.70 |
||
| replacement | |||||
|
43049
|
43049
43049-1102 PACKING,VALVE |
43049-1102 |
from US $4.59 |
||
|
51001
|
51001
51001-1210 TANK-COMP-FUEL |
51001-1210 |
from US $642.30 |
||
|
51023
|
51023
51023-1356 Fuel Tap |
51023-1356 |
from US $60.81 |
||
| replacement | |||||
|
51023
|
51023
51023-0730 Tap-Assy,Fuel |
51023-0730 |
US $113.49 |
||
|
51048
|
51048
51048-1068
CAP-ASSY-TANK,FUEL
|
51048-1068 |
— | ||
|
92001
|
92001
92001-1091 BOLT,6X20,FUEL TAP |
92001-1091 |
from US $2.53 |
||
|
92009
|
92009
92009-1123 SCREW,PAN HEAD,3X5 |
92009-1123 |
from US $0.79 |
||
|
92022
|
92022
92022-183 WASHER-PLAIN |
92022-183 |
from US $2.53 |
||
|
92027
|
92027
92027-1134 COLLAR,FUEL TANK FITT |
92027-1134 |
from US $8.15 |
||
|
92055
|
92055
92055-1111
O-RING,FUEL TAP LEVER
|
92055-1111 |
— | ||
| replacement | |||||
|
92055
|
92055
92055-0960 Ring-O,fuel Tap Lever |
92055-0960 |
from US $6.43 |
||
|
92055A
|
92055A
92055-1348 RING-O,FUEL TAP PACKI |
92055-1348 |
from US $3.96 |
||
|
92075
|
92075
92075-030
DAMPER RUBB TANK REAR
|
92075-030 |
— | ||
|
92075A
|
92075A
92075-044 DAMPER RUBBER |
92075-044 |
from US $2.79 |
||
|
92075B
|
92075B
92075-1369 DAMPER,FUEL TANK,FR |
92075-1369 |
from US $4.75 |
||
|
92170
|
92170
92170-1007
Clamp,hose
|
92170-1007 |
— | ||
