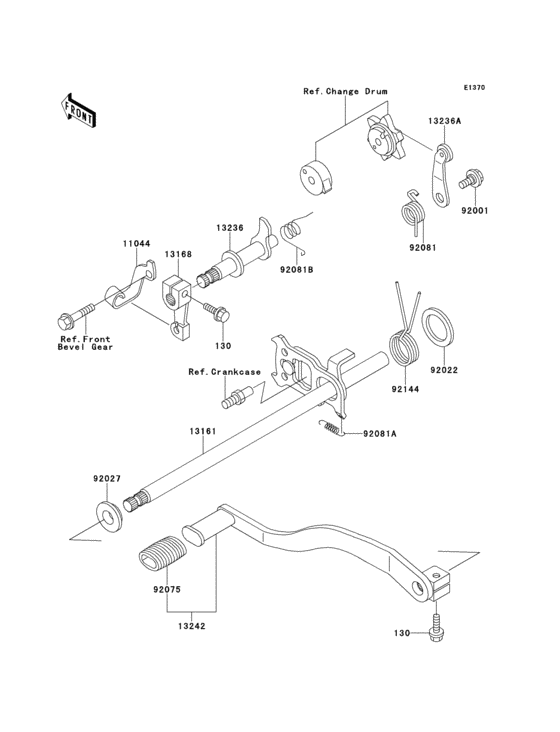

Gear change mechanism Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
11044
|
11044
11044-1303 BRACKET,REVERSE CABLE |
11044-1303 |
from US $5.76 |
||
|
13161
|
13161
13161-0001
LEVER-COMP-CHANGE SHA
|
13161-0001 |
— | ||
|
13168
|
13168
13168-1267 LEVER,REVERSE |
13168-1267 |
from US $16.95 |
||
|
13236
|
13236
13236-1239 LEVER-COMP,REVERSE |
13236-1239 |
from US $20.38 |
||
|
13236A
|
13236A
13236-1178 LEVER-COMP,CHANGE DRU |
13236-1178 |
from US $8.40 |
||
|
13242
|
13242
13242-1236 LEVER-ASSY-CHANGE,PED |
13242-1236 |
from US $41.99 |
||
|
92001
|
92001
92001-1715 BOLT |
92001-1715 |
from US $6.65 |
||
|
92022
|
92022
92022-057 WASHER PLAIN |
92022-057 |
from US $2.65 |
||
|
92027
|
92027
92027-1891 COLLAR,L=5.2 |
92027-1891 |
from US $7.16 |
||
|
92075
|
92075
92075-1585 DAMPER,CHANGE PEDAL |
92075-1585 |
US $6.49 |
||
| replacement | |||||
|
92075
|
92075
92161-2392 DAMPER,CHANGE PEDAL |
92161-2392 |
from US $7.79 |
||
|
92081
|
92081
92145-1525 SPRING,LEVER COMPOSIT |
92145-1525 |
from US $5.39 |
||
|
92081A
|
92081A
92081-1753 SPRING,CHANGE LEVER |
92081-1753 |
from US $3.57 |
||
|
92081B
|
92081B
92081-1850 SPRING,REVERSE LEVER |
92081-1850 |
from US $3.89 |
||
|
92144
|
92144
92144-1216 SPRING,CHANGE SHAFT R |
92144-1216 |
US $8.33 |
||
