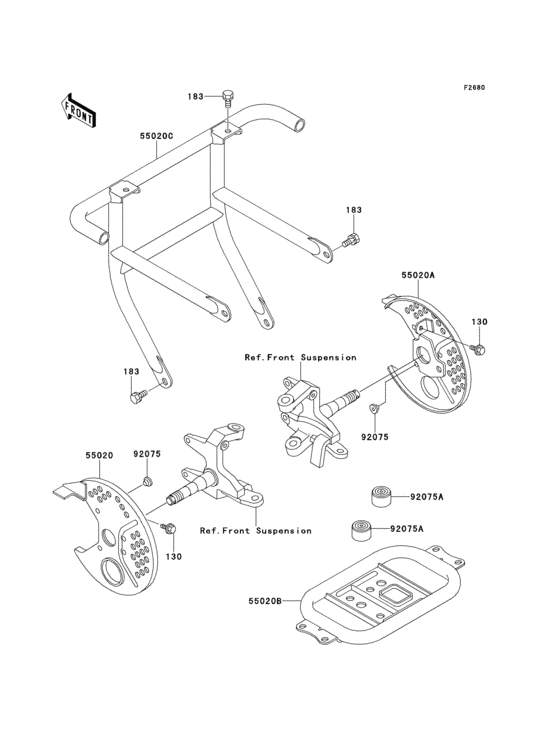

Guard Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
183
|
183
183J0816 BOLT-UPSET-WS-SMALL |
183J0816 |
US $3.71 |
||
| replacement | |||||
|
183
|
183
183BB0816 BOLT-UPSET-WS-SMALL |
183BB0816 |
from US $1.24 |
||
|
55020
|
55020
55020-1223 GUARD,INNER,LH |
55020-1223 |
from US $28.45 |
||
|
55020A
|
55020A
55020-1224 GUARD,INNER,RH |
55020-1224 |
from US $28.45 |
||
|
55020B
|
55020B
55020-1796 GUARD,ENGINE |
55020-1796 |
from US $142.78 |
||
|
55020C
|
55020C
55020-1281 GUARD-FRT |
55020-1281 |
US $66.60 |
||
|
92075
|
92075
92075-1822 DAMPER,INNER |
92075-1822 |
from US $2.95 |
||
|
92075A
|
92075A
92075-1896 DAMPER,CENTER STAND |
92075-1896 |
from US $4.98 |
||
