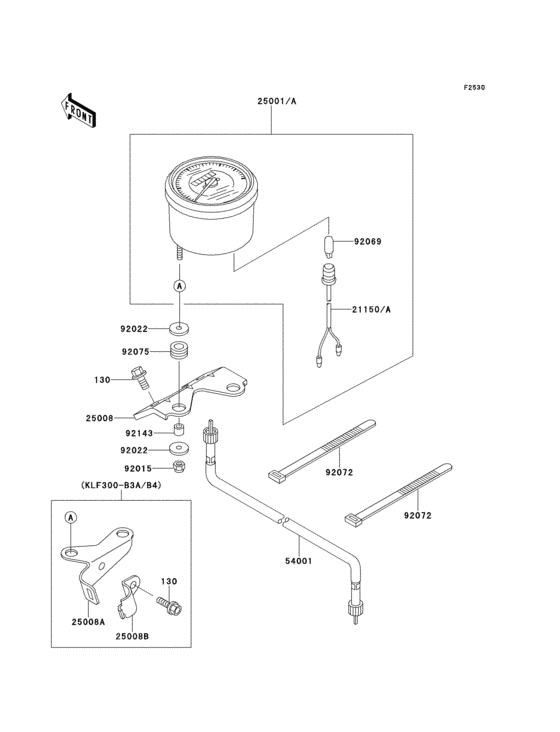

Meter Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0812 BOLT-FLANGED |
130BB0812 |
from US $1.05 |
||
|
21150
|
21150
21150-1054
CORD-ASSY,SPEEDOMETER
|
21150-1054 |
— | ||
|
25001
|
25001
25001-1723 METER-ASSY,SPEED,MPH |
25001-1723 |
from US $216.17 |
||
|
25008
|
25008
25008-1144 BRACKET-METER |
25008-1144 |
US $123.23 |
||
|
54001
|
54001
54001-1115 CABLE-SPEEDOMETER |
54001-1115 |
US $19.28 |
||
|
92015
|
92015
92015-1221 NUT,LOCK,5MM |
92015-1221 |
from US $3.48 |
||
|
92022
|
92022
92022-1405 WASHER,5.5X20X1.2 |
92022-1405 |
from US $2.69 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4W |
92069-1007 |
from US $3.33 |
||
|
92072
|
92072
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92075
|
92075
92075-1409 DAMPER |
92075-1409 |
from US $3.96 |
||
|
92143
|
92143
92143-1235 COLLAR |
92143-1235 |
from US $3.27 |
