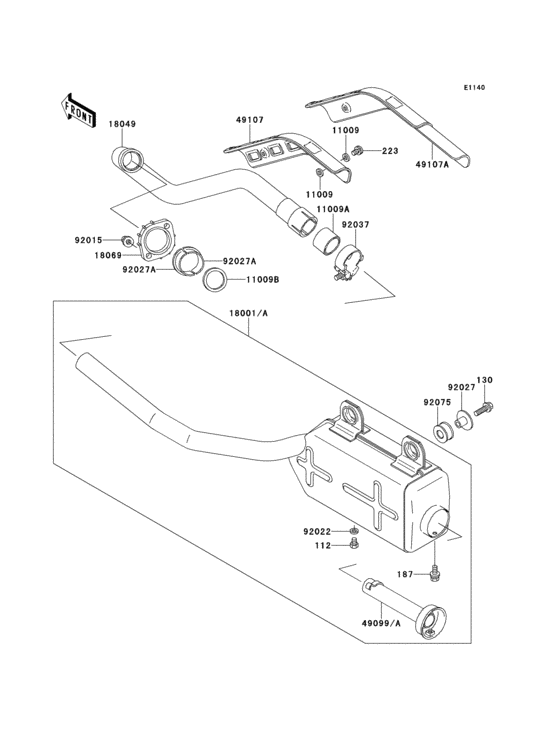

Muffler Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112AA0608 BOLT-UPSET |
112AA0608 |
from US $0.94 |
||
|
130
|
130
130CB0825 BOLT-FLANGED |
130CB0825 |
from US $1.96 |
||
|
187
|
187
187AA0612 BOLT-UPSET-WSP |
187AA0612 |
from US $1.11 |
||
|
223
|
223
223AB0610 SCREW-PAN-WS-CROS |
223AB0610 |
from US $1.11 |
||
|
11009
|
11009
11060-1109 GASKET,6.2X11.5X1.5 |
11060-1109 |
from US $3.17 |
||
|
11009A
|
11009A
11009-1718 GASKET,EXHAUST PIPE C |
11009-1718 |
from US $19.80 |
||
|
11009B
|
11009B
11009-1866 GASKET,EXHAUST PIPE H |
11009-1866 |
from US $4.91 |
||
|
18001
|
18001
18001-1726 MUFFLER |
18001-1726 |
from US $376.36 |
||
|
18049
|
18049
18049-1417 PIPE-EXHAUST |
18049-1417 |
from US $86.42 |
||
|
18069
|
18069
18069-1014 HOLDER EXHAUST PIPE |
18069-1014 |
from US $12.83 |
||
|
49099
|
49099
49099-1249 BAFFLE-PIPE MUFFLER |
49099-1249 |
from US $69.05 |
||
|
49107
|
49107
49107-1065 COVER-EXHAUST PIPE |
49107-1065 |
US $52.33 |
||
|
92015
|
92015
92015-1402 NUT,8MM |
92015-1402 |
from US $2.85 |
||
|
92022
|
92022
92022-304 WASHER,PLAIN |
92022-304 |
from US $2.53 |
||
|
92027
|
92027
92027-1981 COLLAR,MUFFLER |
92027-1981 |
from US $6.54 |
||
|
92027A
|
92027A
92027-264 COLLAR,EXHAUST PIPE |
92027-264 |
from US $3.01 |
||
|
92037
|
92037
92037-1956 CLAMP |
92037-1956 |
from US $20.16 |
||
|
92075
|
92075
92075-1809 DAMPER,MUFFLER |
92075-1809 |
from US $4.98 |
