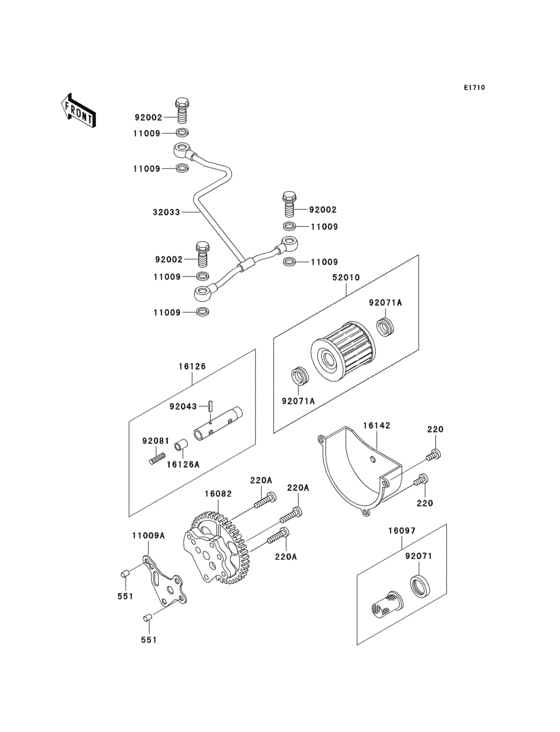

Oil pump Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AA0612 SCREW-PAN-CROSS,6X12 |
220AA0612 |
from US $0.91 |
||
|
220A
|
220A
220AA0625 SCREW-PAN-CROSS,6X25 |
220AA0625 |
from US $0.95 |
||
|
551
|
551
551A0608 PIN,DOWEL,6X8 |
551A0608 |
from US $2.38 |
||
|
11009
|
11009
11009-1105 GASKET,10X14.5X1.5 |
11009-1105 |
from US $4.75 |
||
|
11009A
|
11009A
11060-1657 GASKET,OIL PUMP |
11060-1657 |
from US $4.98 |
||
|
16082
|
16082
16082-1068
PUMP-ASSY-OIL
|
16082-1068 |
— | ||
|
16097
|
16097
16097-1001 STRAINER ASSY,OIL |
16097-1001 |
from US $10.45 |
||
|
16126
|
16126
16156002 PISTON-ASSY,VALVE |
16156002 |
US $23.49 |
||
|
16126A
|
16126A
92136002 PISTON |
92136002 |
from US $3.01 |
||
|
16142
|
16142
16142-1064 COVER-PUMP |
16142-1064 |
from US $10.27 |
||
|
32033
|
32033
32033-1744 PIPE,OIL |
32033-1744 |
from US $52.42 |
||
|
52010
|
52010
16099-004 FILTER,OIL |
16099-004 |
from US $9.64 |
||
|
92002
|
92002
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
|
92043
|
92043
92043-123 SPRING PIN |
92043-123 |
from US $3.01 |
||
|
92071
|
92071
92071-100 GROMMET,OIL STRAINER |
92071-100 |
from US $4.09 |
||
|
92071A
|
92071A
92071-101 GROMMET,OIL FILTER |
92071-101 |
from US $3.33 |
||
|
92081
|
92081
92081-043 SPRING,PISTON |
92081-043 |
from US $3.33 |
