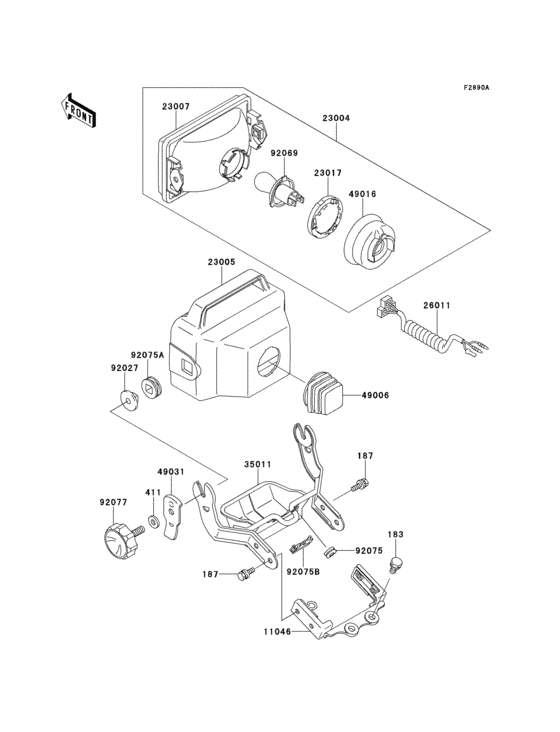

Optional parts(head lamp) Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
183
|
183
183BB0814 BOLT-UPSET-WS-SMALL |
183BB0814 |
from US $1.24 |
||
|
187
|
187
187C0614 BOLT-UPSET-WSP |
187C0614 |
from US $1.43 |
||
| replacement | |||||
|
187
|
187
187AB0614 BOLT-UPSET-WSP |
187AB0614 |
from US $1.24 |
||
|
411
|
411
411F0800 WASHER-PLAIN,8.5X18X1 |
411F0800 |
US $2.68 |
||
| replacement | |||||
|
411
|
411
411AB0800 WASHER-PLAIN,8.5X18X1 |
411AB0800 |
from US $0.79 |
||
|
11046
|
11046
11045-1924 BRACKET,HEAD LAMP |
11045-1924 |
from US $32.82 |
||
|
23004
|
23004
23004-1192 LAMP-HEAD |
23004-1192 |
US $132.28 |
||
| replacements | |||||
|
23004
|
23004
23007-1138 Lens-comp,head lamp |
23007-1138 |
from US $96.42 |
||
|
23004
|
23004
23017-1051 SOCKET |
23017-1051 |
from US $10.27 |
||
|
23004
|
23004
49016-1111 COVER-SEAL |
49016-1111 |
from US $9.68 |
||
|
23004
|
23004
92069-1069
BULB
|
92069-1069 |
— | ||
|
23005
|
23005
23005-1064-6Z BODY-COMP-HEAD LAMP,B |
23005-1064-6Z |
from US $113.21 |
||
|
23007
|
23007
23007-1138 Lens-comp,head lamp |
23007-1138 |
from US $96.42 |
||
|
23017
|
23017
23017-1051 SOCKET |
23017-1051 |
from US $10.27 |
||
|
26011
|
26011
26011-1405 WIRE-LEAD,HEAD LAMP |
26011-1405 |
from US $54.59 |
||
|
35011
|
35011
35011-1413 STAY,HEAD LAMP |
35011-1413 |
from US $42.31 |
||
|
49006
|
49006
49006-1172 BOOT,HEAD LAMP BODY |
49006-1172 |
from US $14.31 |
||
|
49016
|
49016
49016-1111 COVER-SEAL |
49016-1111 |
from US $9.68 |
||
|
49031
|
49031
49031-1052 LATCH,HEAD LAMP |
49031-1052 |
from US $7 |
||
|
92027
|
92027
92027-1938 COLLAR |
92027-1938 |
from US $6.38 |
||
|
92069
|
92069
92069-1069
BULB
|
92069-1069 |
— | ||
|
92075
|
92075
92075-1482 DAMPER,HEAD LAMP HOLD |
92075-1482 |
from US $3.92 |
||
|
92075A
|
92075A
92075-1768 DAMPER |
92075-1768 |
from US $4.98 |
||
|
92075B
|
92075B
92075-1881 DAMPER |
92075-1881 |
from US $3.89 |
||
|
92077
|
92077
92077-1060 KNOB |
92077-1060 |
from US $10.43 |
||
