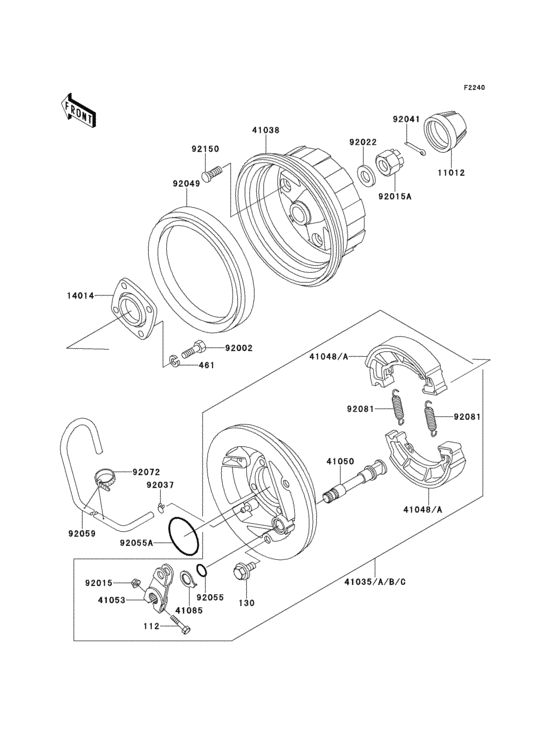

Rear hub Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112BA0640 BOLT-UPSET |
112BA0640 |
from US $1.09 |
||
|
130
|
130
130B1016 BOLT-FLANGED,10X16 |
130B1016 |
US $3.67 |
||
| replacement | |||||
|
130
|
130
130BA1016 BOLT-FLANGED,10X16 |
130BA1016 |
from US $1.40 |
||
|
461
|
461
461DA1000 WASHER-SPRING |
461DA1000 |
from US $0.90 |
||
|
11012
|
11012
11012-1969 CAP,WHEEL |
11012-1969 |
from US $5.33 |
||
|
14014
|
14014
14014-1072 PLATE-POSITION |
14014-1072 |
from US $11.98 |
||
|
41035
|
41035
41035-1228 PANEL-ASSY-BRAKE,RR,R |
41035-1228 |
US $309.35 |
||
|
41035A
|
41035A
41035-1231 PANEL-ASSY-BRAKE,RR,L |
41035-1231 |
US $351.90 |
||
|
41038
|
41038
41038-1201 DRUM,RR |
41038-1201 |
from US $241.06 |
||
|
41048
|
41048
41048-1069 SHOE-BRAKE |
41048-1069 |
from US $25.43 |
||
|
41050
|
41050
41050-1074 CAM-BRAKE |
41050-1074 |
from US $35.61 |
||
|
41053
|
41053
41053-1064 LEVER-BRAKE CAM |
41053-1064 |
from US $34.06 |
||
|
41085
|
41085
41085-1053 INDICATOR |
41085-1053 |
from US $8.87 |
||
|
92002
|
92002
92002-1918 BOLT |
92002-1918 |
from US $3.57 |
||
|
92015
|
92015
41072007 NUT,6MM |
41072007 |
from US $2.85 |
||
|
92015A
|
92015A
42045018 NUT CASTLE,18MM |
42045018 |
from US $7.76 |
||
|
92022
|
92022
92022-1658 WASHER,18.3X34X4.5 |
92022-1658 |
from US $3.17 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $4.95 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35 |
92041-1053 |
from US $2.33 |
||
|
92049
|
92049
92049-1242 SEAL-OIL |
92049-1242 |
from US $79.32 |
||
|
92055
|
92055
92055-1376 RING-O |
92055-1376 |
from US $5.93 |
||
|
92055A
|
92055A
92055-3018 O-RING |
92055-3018 |
from US $3.48 |
||
|
92059
|
92059
92059-1879 TUBE 5X9X1240 |
92059-1879 |
US $19.33 |
||
| replacement | |||||
|
92059
|
92059
92059-1968 TUBE 5X9X1240 |
92059-1968 |
from US $19.33 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92081
|
92081
42020-004 SPRING-BRAKE SHOE |
42020-004 |
from US $6.18 |
||
|
92150
|
92150
92150-1110 BOLT |
92150-1110 |
from US $3.27 |
||
