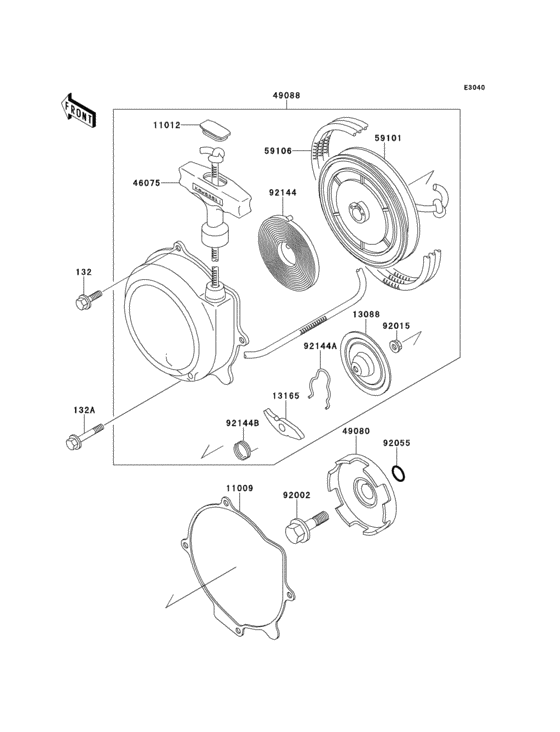

Recoil starter Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BB0614 BOLT-FLANGED-SMALL,6X |
132BB0614 |
from US $1.43 |
||
|
132A
|
132A
132BB0690 BOLT-FLANGED-SMALL |
132BB0690 |
from US $1.56 |
||
|
11009
|
11009
11060-1696 GASKET,RECOIL STARTER |
11060-1696 |
US $9.98 |
||
|
11012
|
11012
11012-1420 CAP,RECOIL GRIP |
11012-1420 |
from US $4.35 |
||
|
13088
|
13088
13088-1073 PLATE-FRICTION,RECOIL |
13088-1073 |
from US $13.84 |
||
|
13165
|
13165
13165-1123 PAWL,RECOIL |
13165-1123 |
from US $14.16 |
||
|
46075
|
46075
46075-1073 GRIP,RECOIL |
46075-1073 |
from US $11.66 |
||
|
49080
|
49080
49080-1055 PULLEY-STARTING |
49080-1055 |
from US $40.44 |
||
|
49088
|
49088
49088-1055
STARTER-RECOIL
|
49088-1055 |
— | ||
|
59101
|
59101
59101-1109 REEL |
59101-1109 |
from US $136.80 |
||
|
59106
|
59106
59106-1103 ROPE |
59106-1103 |
from US $19.28 |
||
|
92002
|
92002
92002-1296 BOLT,10X40 |
92002-1296 |
from US $6.65 |
||
|
92015
|
92015
92015-1464 NUT,6MM |
92015-1464 |
from US $2.95 |
||
|
92055
|
92055
92055-1235 RING-O,16.8MM |
92055-1235 |
from US $3.17 |
||
|
92144
|
92144
92144-1205 SPRING,RECOIL |
92144-1205 |
from US $51.57 |
||
|
92144A
|
92144A
92144-1206 SPRING,FRICTION |
92144-1206 |
from US $12.12 |
||
|
92144B
|
92144B
92144-1207 SPRING,RETURN |
92144-1207 |
from US $3.89 |
