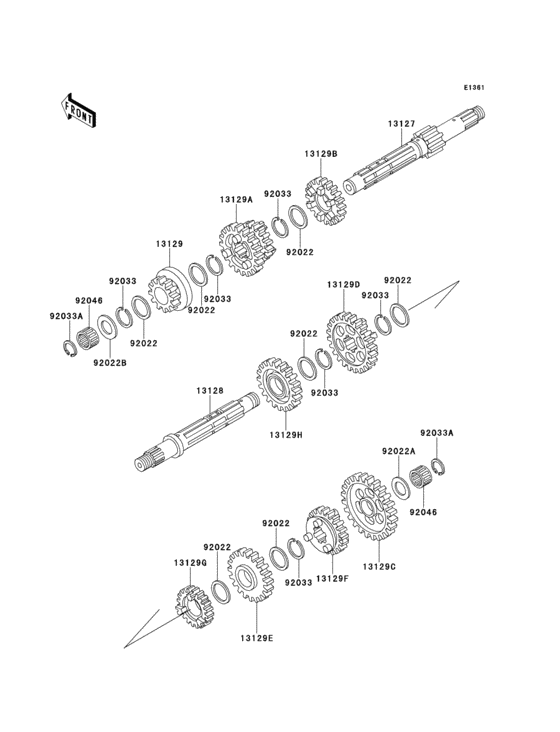

Transmission Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13127
|
13127
13127-1127 SHAFT-TRANSMISSION IN |
13127-1127 |
from US $164.85 |
||
|
13128
|
13128
13128-1132 SHAFT-TRANSMISSION OU |
13128-1132 |
from US $141.68 |
||
|
13129
|
13129
13129-1680 GEAR,INPUT 2ND,14T |
13129-1680 |
from US $78.22 |
||
|
13129A
|
13129A
13129-1681 GEAR,INPUT TOP&3RD,26 |
13129-1681 |
from US $95.33 |
||
|
13129B
|
13129B
13129-1682 GEAR,INPUT 4TH,23T |
13129-1682 |
from US $78.22 |
||
|
13129C
|
13129C
13129-1683 GEAR,OUTPUT LWR,34T |
13129-1683 |
from US $92.53 |
||
|
13129D
|
13129D
13129-1684 GEAR,OUTPUT 2ND,27T |
13129-1684 |
from US $92.53 |
||
|
13129E
|
13129E
13129-1685 GEAR,OUTPUT 3RD,26T |
13129-1685 |
from US $78.22 |
||
|
13129F
|
13129F
13129-1686 GEAR,OUTPUT 4TH,22T |
13129-1686 |
from US $78.22 |
||
|
13129G
|
13129G
13129-1687 GEAR,OUTPUT TOP,20T |
13129-1687 |
from US $78.22 |
||
|
13129H
|
13129H
13129-1688 GEAR-REVERSE,26T |
13129-1688 |
from US $78.22 |
||
|
92022
|
92022
92022-198 WASHER-PLAIN |
92022-198 |
from US $3.17 |
||
|
92022A
|
92022A
92022-255 WASHER,17.3X28X1.0 |
92022-255 |
from US $5.39 |
||
|
92022B
|
92022B
92022-270 WASHER,PLAIN |
92022-270 |
from US $6.65 |
||
|
92033
|
92033
92033-025 CIRCLIP,25MM |
92033-025 |
from US $3.73 |
||
|
92033A
|
92033A
92033-032 CIRCLIP,16MM |
92033-032 |
from US $3.01 |
||
|
92046
|
92046
92046-1184 BEARING-NEEDLE |
92046-1184 |
from US $20 |
