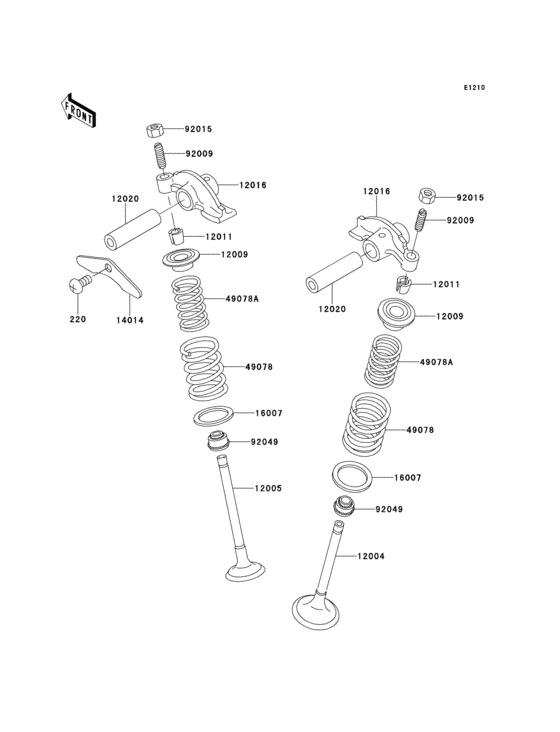

Valve Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AA0610 SCREW-PAN HEAD,6X10 |
220AA0610 |
from US $0.95 |
||
|
12004
|
12004
12004-1123 VALVE-INTAKE |
12004-1123 |
from US $29.39 |
||
|
12005
|
12005
12005-1005 Valve,exhaust |
12005-1005 |
from US $50.42 |
||
|
12009
|
12009
12009006 RETAINER,VALVE SPRING |
12009006 |
from US $8.40 |
||
|
12011
|
12011
12011-004 SPLIT KEEPER |
12011-004 |
from US $3.64 |
||
|
12016
|
12016
12016-1078 ARM-ROCKER |
12016-1078 |
from US $52.42 |
||
|
12020
|
12020
12020004 SHAFT,ROCKER ARM |
12020004 |
from US $14.82 |
||
|
14014
|
14014
14014034 PLATE,POSITIONING |
14014034 |
from US $6.18 |
||
|
16007
|
16007
12010005 SEAT,VLV OUTER SPRING |
12010005 |
from US $4.67 |
||
|
49078
|
49078
12007013 SPRING,OUTER VALVE |
12007013 |
from US $11.88 |
||
|
49078A
|
49078A
12007014 SPRING,INNER VALVE |
12007014 |
from US $11.88 |
||
|
92009
|
92009
92013-009 SCREW,SLOTTED,ROCKER |
92013-009 |
from US $3.80 |
||
|
92015
|
92015
92016-061 NUT,6MM |
92016-061 |
from US $3.17 |
||
| replacement | |||||
|
92015
|
92015
92210-1490 NUT,6MM |
92210-1490 |
from US $2.85 |
||
|
92049
|
92049
92049-016 OIL SEAL,RV37129.5 |
92049-016 |
from US $11.72 |
||
