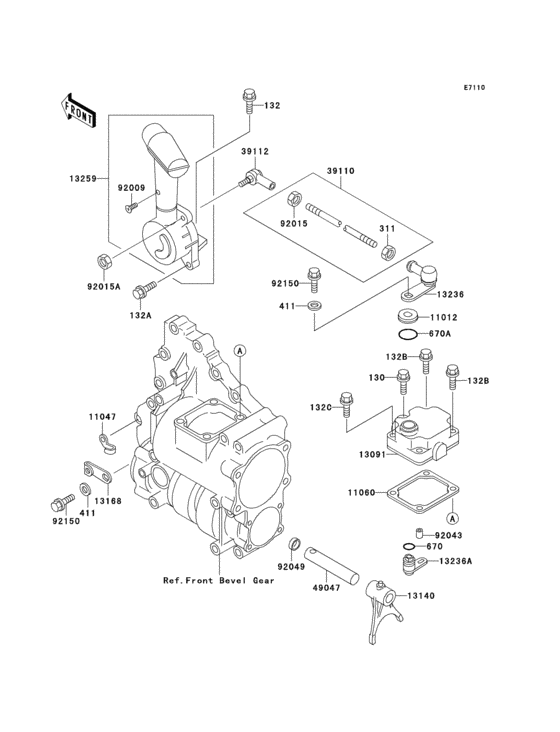

Control Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-C14
- Engine Capacity
- 290
- Year
- 2002
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Bayou 300 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
132
|
132
92150-1010 BOLT,6X20 |
92150-1010 |
from US $2.38 |
||
| replacement | |||||
|
132
|
132
132BB0620 BOLT,6X20 |
132BB0620 |
from US $2.38 |
||
|
132A
|
132A
92150-1779 BOLT-FLANGED-SMALL,6X |
92150-1779 |
from US $2.69 |
||
| replacement | |||||
|
132A
|
132A
132BB0625 BOLT-FLANGED-SMALL,6X |
132BB0625 |
from US $1.27 |
||
|
132B
|
132B
92150-1021 BOLT,6X30 |
92150-1021 |
from US $3.37 |
||
| replacement | |||||
|
132B
|
132B
132BB0630 BOLT,6X30 |
132BB0630 |
from US $2.69 |
||
|
132C
|
132C
92002-1566 BOLT,6X40 |
92002-1566 |
from US $3.01 |
||
|
311
|
311
311BB0600 NUT-HEX,6MM |
311BB0600 |
from US $0.72 |
||
|
411
|
411
411AB0600 WASHER-PLAIN,(6.5x13x1) |
411AB0600 |
from US $0.63 |
||
|
670
|
670
670B2010 0 RING, 10MM |
670B2010 |
from US $1.89 |
||
|
670A
|
670A
670B2018 0 RING,18MM |
670B2018 |
from US $3.20 |
||
|
11012
|
11012
11012-1652 CAP |
11012-1652 |
from US $4.67 |
||
|
11047
|
11047
11047-1440
BRACKET,RELEASE LOCK
|
11047-1440 |
— | ||
|
11060
|
11060
11060-1718 GASKET,CONTROL LEVER |
11060-1718 |
from US $3.73 |
||
|
13091
|
13091
13091-1548 HOLDER |
13091-1548 |
from US $34.06 |
||
|
13140
|
13140
13140-1175 FORK-SHIFT |
13140-1175 |
from US $68.59 |
||
|
13168
|
13168
13168-1395 LEVER,RELEASE LOCK |
13168-1395 |
from US $5.90 |
||
|
13236
|
13236
13236-1175 LEVER-COMP |
13236-1175 |
from US $67.03 |
||
|
13236A
|
13236A
13236-1176 LEVER-COMP |
13236-1176 |
from US $14.16 |
||
|
13259
|
13259
13259-1003 LEVER-ASSY-SHIFT CONT |
13259-1003 |
from US $387.24 |
||
|
39110
|
39110
39110-1087 ROD-ASSY-TIE |
39110-1087 |
from US $7.16 |
||
|
39112
|
39112
39112-1006 RODEND,TIE,GR CHANGE |
39112-1006 |
from US $30.33 |
||
|
49047
|
49047
49047-1078 ROD-SHIFT |
49047-1078 |
from US $16.79 |
||
|
92009
|
92009
92009-1554 SCREW,4X8 |
92009-1554 |
from US $2.33 |
||
|
92015
|
92015
92015-1178 NUT |
92015-1178 |
from US $3.37 |
||
|
92015A
|
92015A
92210-0006 NUT,LOCK,6MM |
92210-0006 |
from US $1.27 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92049
|
92049
92049-1311 SEAL-OIL,RCA124 |
92049-1311 |
from US $3.57 |
||
|
92150
|
92150
92153-0010 BOLT,FLANGED,6X12 |
92153-0010 |
from US $1.24 |
||
