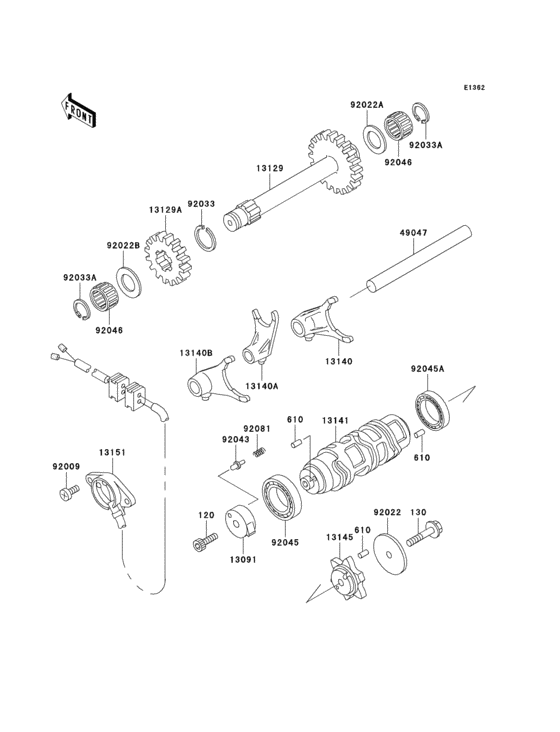

Gear change drum/shift fork(s) Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-C14
- Engine Capacity
- 290
- Year
- 2002
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Bayou 300 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0620 BOLT-SOCKET |
120CB0620 |
from US $1.11 |
||
|
130
|
130
130BA0630 BOLT-FLANGED,6X30 |
130BA0630 |
from US $0.95 |
||
|
610
|
610
610A0410 PIN DOWEL 4X10 |
610A0410 |
from US $0.79 |
||
|
13091
|
13091
13091-1443
HOLDER,NEUTRAL SWITCH
|
13091-1443 |
— | ||
|
13129
|
13129
13129-1705 GEAR-REVERSE |
13129-1705 |
from US $147.12 |
||
|
13129A
|
13129A
13129-1706 GEAR-REVERSE,20T |
13129-1706 |
from US $43.08 |
||
|
13140
|
13140
13140-1172 FORK-SHIFT |
13140-1172 |
from US $59.26 |
||
|
13140A
|
13140A
13140-1173 FORK-SHIFT |
13140-1173 |
from US $59.26 |
||
|
13140B
|
13140B
13140-1174 FORK-SHIFT |
13140-1174 |
from US $59.26 |
||
|
13141
|
13141
13141-1152 DRUM-CHANGE |
13141-1152 |
US $107.65 |
||
|
13145
|
13145
13145-1057 CAM-CHANGE DRUM |
13145-1057 |
from US $30.01 |
||
|
13151
|
13151
13151-1097
SWITCH-COMP
|
13151-1097 |
— | ||
|
49047
|
49047
49047-1077 ROD-SHIFT |
49047-1077 |
from US $16.79 |
||
|
92009
|
92009
92009-1341 SCREW,5X14 |
92009-1341 |
from US $3.73 |
||
|
92022
|
92022
92022-1500 WASHER,6.2X38X1.2 |
92022-1500 |
from US $6.54 |
||
|
92022A
|
92022A
92022-255 WASHER,17.3X28X1.0 |
92022-255 |
from US $5.39 |
||
|
92022B
|
92022B
92022-270 WASHER,PLAIN |
92022-270 |
from US $6.65 |
||
|
92033
|
92033
92033-025 CIRCLIP,25MM |
92033-025 |
from US $3.73 |
||
|
92033A
|
92033A
92033-032 CIRCLIP,16MM |
92033-032 |
from US $3.01 |
||
|
92043
|
92043
92043-1287 PIN |
92043-1287 |
from US $4.98 |
||
|
92045
|
92045
92045-1122 BEARING-BALL,6805 |
92045-1122 |
from US $30.07 |
||
|
92045A
|
92045A
92045-1150 BEARING-BALL,6905X1 |
92045-1150 |
from US $22.39 |
||
|
92046
|
92046
92046-1184 BEARING-NEEDLE |
92046-1184 |
from US $20 |
||
|
92081
|
92081
92081-1763 SPRING |
92081-1763 |
from US $2.65 |
