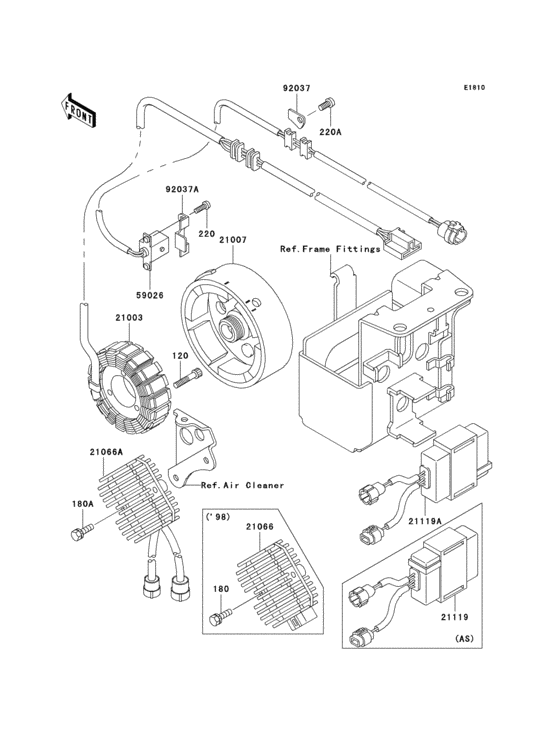

Generator Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-C14
- Engine Capacity
- 290
- Year
- 2002
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Bayou 300 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0630 BOLT-SOCKET,6X30 |
120CA0630 |
from US $1.27 |
||
|
180A
|
180A
180AA0625 BOLT-UPSET-WS,6X25 |
180AA0625 |
from US $1.15 |
||
|
220
|
220
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
220A
|
220A
220AA0612 SCREW-PAN-CROSS,6X12 |
220AA0612 |
from US $0.91 |
||
|
21003
|
21003
21003-1276 STATOR |
21003-1276 |
from US $423.01 |
||
|
21007
|
21007
21007-1361 Rotor |
21007-1361 |
from US $365.47 |
||
|
21066A
|
21066A
21066-0047 REGULATOR-VOLTAGE |
21066-0047 |
from US $237.60 |
||
|
21119A
|
21119A
21119-1447 Igniter |
21119-1447 |
US $514.77 |
||
|
59026
|
59026
59026-1092 COIL-PULSING |
59026-1092 |
from US $74.74 |
||
|
92037
|
92037
92037-1656 CLAMP,WIRING HARNESS |
92037-1656 |
from US $2.65 |
||
|
92037A
|
92037A
92037-1987 Clamp |
92037-1987 |
from US $4.98 |
