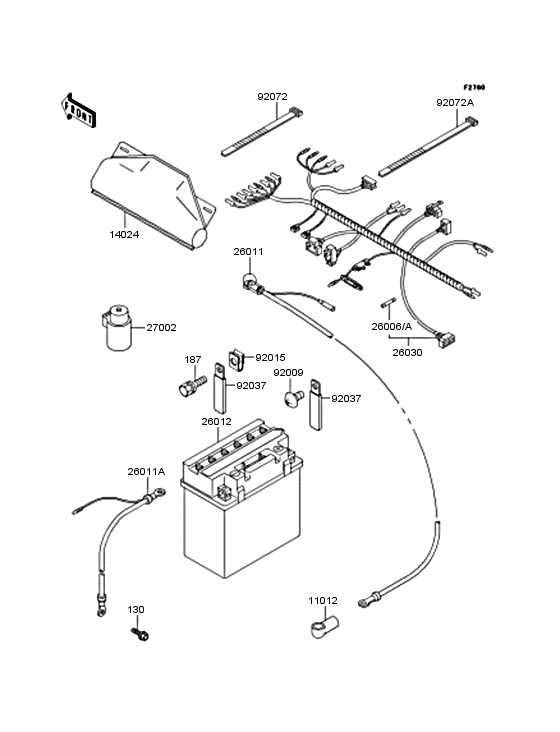

Chassis electrical equipment Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Sales region
- Canada
- Colour
- Moon Beam Gray (SK)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0610
BOLT-FLANGED,6X10
ボルト(ツバツキ)，6X10 |
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10ボルト(ツバツキ)，6X10 |
130AA0610 |
from US $0.82 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10ボルト(ツバツキ)，6X10 |
130BA0610 |
from US $0.79 |
||
|
187
|
187
187C0614 BOLT-UPSET-WSPボルト(アプセツトバネヒラツキ) |
187C0614 |
from US $1.43 |
||
| replacement | |||||
|
187
|
187
187AB0614 BOLT-UPSET-WSPボルト(アプセツトバネヒラツキ) |
187AB0614 |
from US $1.24 |
||
|
11012
|
11012
11012-1354 CAP,TERMINALキヤツプ，タ-ミナル |
11012-1354 |
from US $7.44 |
||
|
14024
|
14024
14024-1624
COVER,COUPLER
カバ-，カプラ |
14024-1624 |
— | ||
| replacement | |||||
|
14024
|
14024
14090-1611 COVER,COUPLERカバ-，カプラ |
14090-1611 |
from US $6.18 |
||
|
26006
|
26006
26006-1059 FUSE,GLASS TUBE,6.4X3ヒユ-ズ，30A，L=30 |
26006-1059 |
from US $3.64 |
||
|
26006A
|
26006A
26006-1062 FUSE,GLASS TUBE,6.4X3ヒユ-ズ，8A，L=30 |
26006-1062 |
from US $3.57 |
||
|
26011
|
26011
26011-1513 WIRE-LEAD,BATTERY(+)ワイヤ(リ-ド)，バツテリ(+) |
26011-1513 |
US $19.31 |
||
|
26011A
|
26011A
26011-1514
WIRE-LEAD,BATTERY(-)
ワイヤ(リ-ド)，バツテリ(-) |
26011-1514 |
— | ||
|
26012
|
26012
26012-1242
Battery,yb16cl-b,12v
バツテリ，YB16CL-B，12V 19AH |
26012-1242 |
— | ||
| replacement | |||||
|
26012
|
26012
K2601-237-04
YUA BAT YB16CL-B
バツテリ，YB16CL-B，12V 19AH |
K2601-237-04 |
— | ||
|
26030
|
26030
26030-1119
HARNESS,MAIN
ハ-ネス |
26030-1119 |
— | ||
|
27002
|
27002
27002-1051 RELAY-ASSYリレ-アツシ |
27002-1051 |
from US $40.09 |
||
|
92009
|
92009
92009-1155 SCREW,TAPPING,4X8スクリユ-，タツピング，4X8 |
92009-1155 |
from US $2.38 |
||
|
92015
|
92015
92015-1671 NUT,6MMナツト，6MM |
92015-1671 |
from US $4.75 |
||
|
92037
|
92037
92037-1069
CLAMP
クランプ，ワイヤリング ハ-ネス |
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMPクランプ，ワイヤリング ハ-ネス |
92171-0652 |
from US $1.27 |
||
|
92072
|
92072
92072-030 BAND,SHORTバンド，L=123 |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-1239 BAND,L=188バンド，L=188 |
92072-1239 |
from US $1.90 |
||
