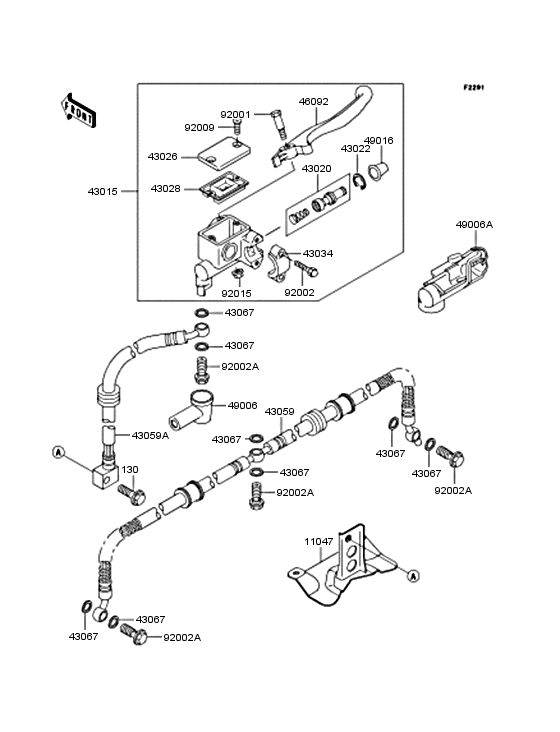

Front master cylinder Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Sales region
- Canada
- Colour
- Moon Beam Gray (SK)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0825
BOLT-FLANGED,8X25
ボルト(ツバツキ)，8X25 |
130B0825 |
— | ||
| replacement | |||||
|
130
|
130
130CA0825 BOLT-FLANGED,8X25ボルト(ツバツキ)，8X25 |
130CA0825 |
from US $0.94 |
||
|
11047
|
11047
11047-1583 BRACKET,HOSE&RADIATORブラケツト，ホ-スラジエ-タ カバ- |
11047-1583 |
US $63.11 |
||
|
43015
|
43015
43015-1489 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-1489 |
from US $309.48 |
||
|
43020
|
43020
43020-1056 PISTON-COMP-BRAKE,FRピストンコンプ(ブレ-キ)，FR |
43020-1056 |
from US $42.04 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERストツパ(ブレ-キ)，ピストン |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1074 CAP-BRAKEキヤツプ(ブレ-キ) |
43026-1074 |
from US $17.42 |
||
|
43028
|
43028
43028-1061 DIAPHRAGMダイアフラム |
43028-1061 |
from US $11.72 |
||
|
43034
|
43034
43034-1016 HOLDER-BRAKE,MASTER Cホルダ(ブレ-キ) |
43034-1016 |
from US $14.10 |
||
|
43059
|
43059
43059-1769
HOSE-BRAKE,FR,LWR
ホ-ス(ブレ-キ)，FR，LWR |
43059-1769 |
— | ||
|
43059A
|
43059A
43059-1787 HOSE-BRAKE,FR,UPPホ-ス(ブレ-キ)，FR，UPP |
43059-1787 |
US $79.52 |
||
|
43067
|
43067
43067-001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
49091-0001 |
from US $1.27 |
||
|
46092
|
46092
46092-1136 LEVER-GRIP,FRONT BRAKレバ-(グリツプ)，フロント ブレ-キ |
46092-1136 |
from US $23.49 |
||
|
49006
|
49006
49006-1040 BOOT,DUSTブ-ツ，ダスト |
49006-1040 |
from US $7.29 |
||
| replacement | |||||
|
49006
|
49006
49006-1041 BOOT,DUSTブ-ツ，ダスト |
49006-1041 |
from US $9.35 |
||
|
49006A
|
49006A
49006-1198
BOOT
ブ-ツ，RH |
49006-1198 |
— | ||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERカバ-(シ-ル) |
49016-1044 |
from US $10.08 |
||
|
92001
|
92001
92001-1728 BOLT,FRONT BRAKE LEVERボルト，フロント ブレ-キ レバ- |
92001-1728 |
from US $10.45 |
||
|
92002
|
92002
92002-1860 BOLTボルト |
92002-1860 |
US $4.27 |
||
| replacement | |||||
|
92002
|
92002
92002-1894 BOLTボルト |
92002-1894 |
from US $3.17 |
||
|
92002A
|
92002A
92002-1888
BOLT,OIL,L=23
ボルト，オイル，L=23 |
92002-1888 |
— | ||
| replacement | |||||
|
92002A
|
92002A
92153-0627 BOLT,OIL,L=23ボルト，オイル，L=23 |
92153-0627 |
from US $2.85 |
||
|
92009
|
92009
92009-1458 SCREW,4MMスクリユ-，4MM |
92009-1458 |
from US $3.02 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMナツト，フランジ，6MM |
92015-1233 |
from US $3.90 |
||
