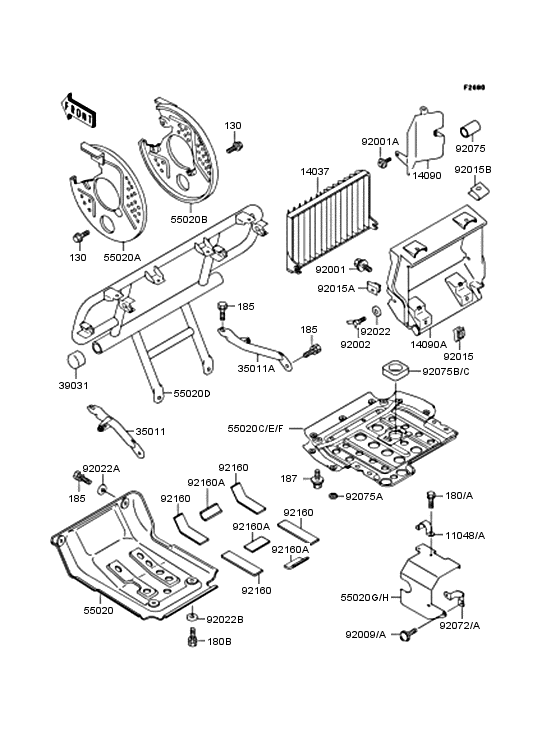

Guard Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Sales region
- Canada
- Colour
- Moon Beam Gray (SK)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11048
|
11048
11048-1228
ブラケツト，スノ- ガ-ド
ブラケツト，スノ- ガ-ド |
11048-1228 |
— | ||
|
11048A
|
11048A
11048-1228
ブラケツト，スノ- ガ-ド
ブラケツト，スノ- ガ-ド; JKALFKB1 PB505305 - |
11048-1228 |
— | ||
|
14037
|
14037
14037-1154 SCREENスクリ-ン; オプシヨン |
14037-1154 |
US $30.80 |
||
|
14090
|
14090
14090-1225 COVER,RADIATORカバ-，ラジエ-タ |
14090-1225 |
US $30.60 |
||
|
14090A
|
14090A
14090-1490 COVER,RADIATORカバ-，ラジエ-タ |
14090-1490 |
US $61.94 |
||
|
35011
|
35011
35011-1595 STAY,FRONT GUARD,LHステ-，フロント ガ-ド，LH |
35011-1595 |
US $29.59 |
||
|
35011A
|
35011A
35011-1596 STAY,FRONT GUARD,RHステ-，フロント ガ-ド，RH |
35011-1596 |
US $29.59 |
||
|
39031
|
39031
39031-1059 CAP-END,BUMPER PIPEキヤツプ(エンド)，バンパ パイプ |
39031-1059 |
from US $5.44 |
||
|
55020
|
55020
55020-1303 GUARD,FRONT DIFFガ-ド，フロント デイフ |
55020-1303 |
from US $53.19 |
||
|
55020A
|
55020A
55020-1304 GUARD,FRONT DISC,LHガ-ド，フロント デイスク，LH |
55020-1304 |
from US $27.84 |
||
|
55020B
|
55020B
55020-1305 GUARD,FRONT DISC,RHガ-ド，フロント デイスク，RH |
55020-1305 |
from US $27.84 |
||
|
55020C
|
55020C
55020-1416 GUARD,ENGINEガ-ド，エンジン; - JKALFKB1 PB505879 |
55020-1416 |
US $58.81 |
||
| replacement | |||||
|
55020C
|
55020C
55020-1468 GUARD,ENGINEガ-ド，エンジン; - JKALFKB1 PB505879 |
55020-1468 |
US $58.81 |
||
|
55020D
|
55020D
55020-1417
GUARD,FR
ガ-ド，FR |
55020-1417 |
— | ||
|
55020E
|
55020E
55020-1468 GUARD,ENGINEガ-ド，エンジン |
55020-1468 |
US $58.81 |
||
|
55020F
|
55020F
55020-1468 GUARD,ENGINEガ-ド，エンジン; JKALFKB1 PB505880 - |
55020-1468 |
US $58.81 |
||
|
55020G
|
55020G
55020-1486
Guard,snow
ガ-ド，スノ- |
55020-1486 |
— | ||
|
55020H
|
55020H
55020-1486
Guard,snow
ガ-ド，スノ-; JKALFKB1 PB505305 - |
55020-1486 |
— | ||
|
92001
|
92001
92001-1851 BOLT,W/SP,6X16ボルト，6X16 |
92001-1851 |
US $3.29 |
||
| replacement | |||||
|
92001
|
92001
92001-1763 BOLT,W/SP,6X16ボルト，6X16 |
92001-1763 |
from US $3.01 |
||
|
92001A
|
92001A
92001-1944
BOLT,W/SP,6X18
ボルト，6X18 |
92001-1944 |
— | ||
| replacement | |||||
|
92001A
|
92001A
92001-1764
BOLT,W/SP,6X18
ボルト，6X18 |
92001-1764 |
— | ||
|
92002
|
92002
92002-1599
BOLT,WING
ボルト，ウイング |
92002-1599 |
— | ||
|
92009
|
92009
92009-1480 SCREWスクリユ-，6X12 |
92009-1480 |
from US $2.38 |
||
|
92009A
|
92009A
92009-1480 SCREWスクリユ-，6X12; JKALFKB1 PB505305 - |
92009-1480 |
from US $2.38 |
||
|
92015
|
92015
92015-1487 NUTナツト |
92015-1487 |
from US $4.25 |
||
|
92015A
|
92015A
92015-1602 NUT,6MMナツト，6MM |
92015-1602 |
from US $3.96 |
||
|
92015B
|
92015B
92015-1691 NUT,8MMナツト，クリツプ，8MM |
92015-1691 |
from US $4.82 |
||
|
92022
|
92022
92022-1258 WASHER,7.2X21ワツシヤ，7.2X21 |
92022-1258 |
US $3.37 |
||
|
92022A
|
92022A
92022-1317 WASHER,8.5X20X1.6,BLAワツシヤ，8.5X20X1.6 |
92022-1317 |
from US $2.69 |
||
|
92022B
|
92022B
92022-1346 WASHER,6.5X20X1.6.BLAワツシヤ，6.5X20X1.6 |
92022-1346 |
from US $0.82 |
||
|
92072
|
92072
92072-1252 BANDバンド |
92072-1252 |
from US $6.68 |
||
|
92072A
|
92072A
92072-1252 BANDバンド; JKALFKB1 PB505305 - |
92072-1252 |
from US $6.68 |
||
