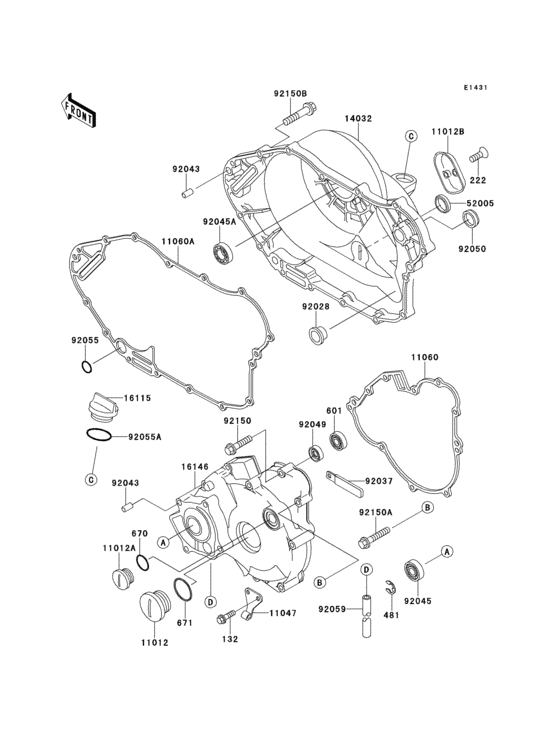

Engine cover(s) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Sales region
- Canada
- Colour
- Blue 42 (RT)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0612
BOLT-FLANGED-SMALL,6X
|
132G0612 |
— | ||
| replacement | |||||
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6X |
132BA0612 |
from US $0.79 |
||
|
481
|
481
481J2200 CIRCLIP-TYPE-C,22MM |
481J2200 |
from US $1.27 |
||
|
601
|
601
601A6000 BEARING-BALL |
601A6000 |
from US $7.13 |
||
|
670
|
670
670B2018 0 RING,18MM |
670B2018 |
from US $1.77 |
||
|
671
|
671
671B2540 0 RING,40MM |
671B2540 |
from US $3.48 |
||
|
11012
|
11012
11012-1362 CAP |
11012-1362 |
from US $6.34 |
||
|
11012A
|
11012A
11012-1363 CAP,TOP MARK |
11012-1363 |
from US $4.75 |
||
|
11012B
|
11012B
11012-1644 CAP,CLUTCH RELEASE |
11012-1644 |
from US $13.54 |
||
|
11047
|
11047
11047-1494 BRACKET,CABLE |
11047-1494 |
US $6.59 |
||
|
11060
|
11060
11060-1208 GASKET,GENERATOR |
11060-1208 |
from US $14.93 |
||
|
11060A
|
11060A
11060-1209 GASKET,CLUTCH COVER |
11060-1209 |
US $26.77 |
||
|
14032
|
14032
14032-5021 COVER-CLUTCH |
14032-5021 |
US $218.52 |
||
|
16115
|
16115
16115-1009 CAP-OIL FILLER |
16115-1009 |
from US $10.14 |
||
|
16146
|
16146
16146-1155
COVER-ASSY
|
16146-1155 |
— | ||
|
52005
|
52005
52005-1009 GAUGE,OIL LEVEL |
52005-1009 |
from US $13.15 |
||
|
92028
|
92028
92028-1544 BUSHING |
92028-1544 |
from US $8.55 |
||
|
92037
|
92037
92037-1539 CLAMP,WIRING HARNESS |
92037-1539 |
from US $3.17 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92045
|
92045
92045-1206
BEARING-BALL
|
92045-1206 |
— | ||
|
92045A
|
92045A
92045-1256
BEARING-BALL,6303RUED
|
92045-1256 |
— | ||
|
92049
|
92049
92049-1157 SEAL-OIL,SC10227 |
92049-1157 |
from US $6.34 |
||
|
92050
|
92050
92050-078 OIL SEAL |
92050-078 |
from US $5.54 |
||
|
92055
|
92055
92055-048 O RING,0.D=18MM |
92055-048 |
from US $3.33 |
||
|
92055A
|
92055A
92055-049 O-RING,31MM |
92055-049 |
from US $3.37 |
||
|
92059
|
92059
92059-080 PIPE-FUEL |
92059-080 |
from US $3.89 |
||
|
92150
|
92150
92150-1600 BOLT-FLANGED-SMALL,6X |
92150-1600 |
US $1.51 |
||
| replacement | |||||
|
92150
|
92150
132BA0635 BOLT-FLANGED-SMALL,6X35 |
132BA0635 |
from US $1.25 |
||
|
92150A
|
92150A
92150-1601 BOLT-FLANGED-SMALL |
92150-1601 |
US $2.52 |
||
| replacement | |||||
|
92150A
|
92150A
132BA0650 BOLT-FLANGED-SMALL |
132BA0650 |
from US $1.27 |
||
|
92150B
|
92150B
92150-1602 BOLT-FLANGED-SMALL |
92150-1602 |
US $1.82 |
||
| replacement | |||||
|
92150B
|
92150B
132BA0630 BOLT-FLANGED-SMALL |
132BA0630 |
from US $1.27 |
||
