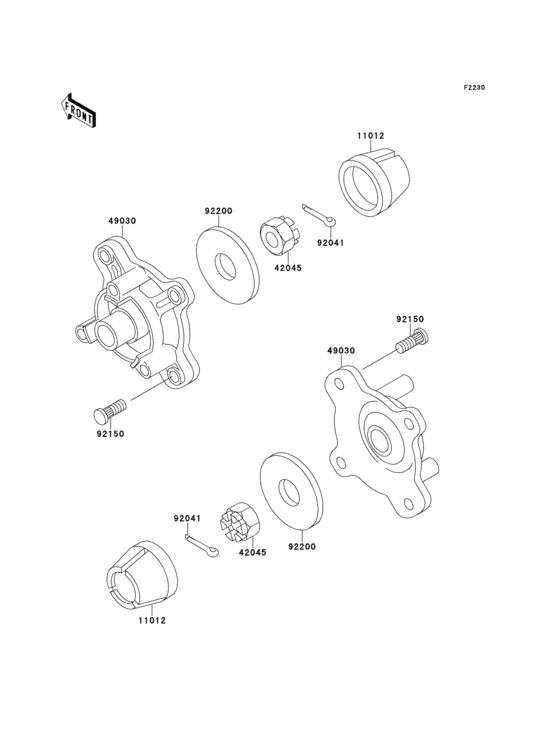

Front hub Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Sales region
- Canada
- Colour
- Blue 42 (RT)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1519 CAP,WHEEL |
11012-1519 |
US $4.34 |
||
| replacement | |||||
|
11012
|
11012
11012-1969 CAP,WHEEL |
11012-1969 |
from US $5.33 |
||
|
42045
|
42045
42045018 NUT CASTLE,18MM |
42045018 |
from US $7.76 |
||
|
49030
|
49030
49030-1102 HUB,FR |
49030-1102 |
US $159.17 |
||
| replacement | |||||
|
49030
|
49030
49030-1116 HUB,FR |
49030-1116 |
from US $112.59 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35 |
92041-1053 |
from US $2.33 |
||
|
92150
|
92150
92150-1289 BOLT |
92150-1289 |
from US $3.11 |
||
|
92200
|
92200
92200-1139 WASHER,18.5X52X4.5 |
92200-1139 |
US $6.80 |
||
| replacement | |||||
|
92200
|
92200
92200-1474 WASHER,18.5X52X4.5 |
92200-1474 |
from US $4.67 |
||
