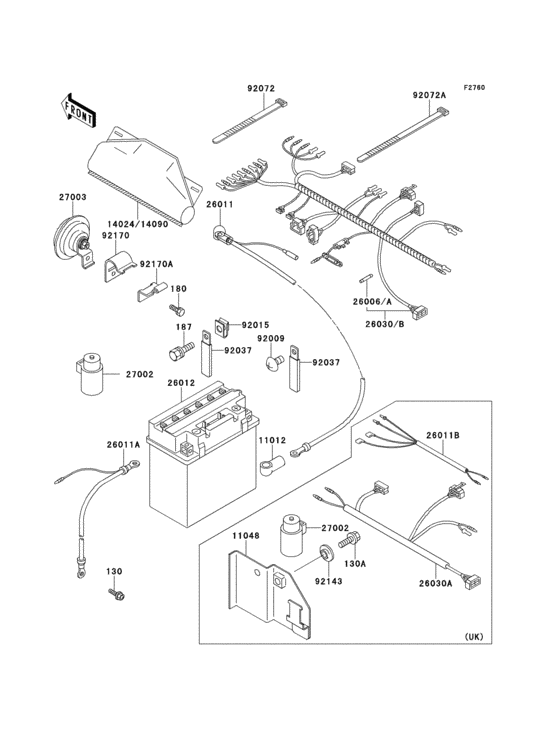

Chassis electrical equipment Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Frame
- LF400B 600001 - 600700
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
187
|
187
187C0614 BOLT-UPSET-WSP |
187C0614 |
from US $1.43 |
||
| replacement | |||||
|
187
|
187
187AB0614 BOLT-UPSET-WSP |
187AB0614 |
from US $1.24 |
||
|
11012
|
11012
11012-1354 CAP,TERMINAL |
11012-1354 |
from US $7.44 |
||
|
14024
|
14024
14090-1611 COVER,COUPLER |
14090-1611 |
from US $6.18 |
||
|
26006
|
26006
26006-1059 FUSE,GLASS TUBE,6.4X3 |
26006-1059 |
from US $3.64 |
||
|
26006A
|
26006A
26006-1062 FUSE,GLASS TUBE,6.4X3 |
26006-1062 |
from US $3.57 |
||
|
26011
|
26011
26011-1513 WIRE-LEAD,BATTERY(+) |
26011-1513 |
US $19.31 |
||
|
26011A
|
26011A
26011-1514
WIRE-LEAD,BATTERY(-)
|
26011-1514 |
— | ||
|
26012
|
26012
K2601-237-04
YUA BAT YB16CL-B
|
K2601-237-04 |
— | ||
|
26030
|
26030
26030-1119
HARNESS,MAIN
|
26030-1119 |
— | ||
|
27002
|
27002
27002-1051 RELAY-ASSY |
27002-1051 |
from US $40.09 |
||
|
92009
|
92009
92009-1155 SCREW,TAPPING,4X8 |
92009-1155 |
from US $2.38 |
||
|
92015
|
92015
92015-1671 NUT,6MM |
92015-1671 |
from US $4.75 |
||
|
92037
|
92037
92171-0652 CLAMP |
92171-0652 |
from US $1.27 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
