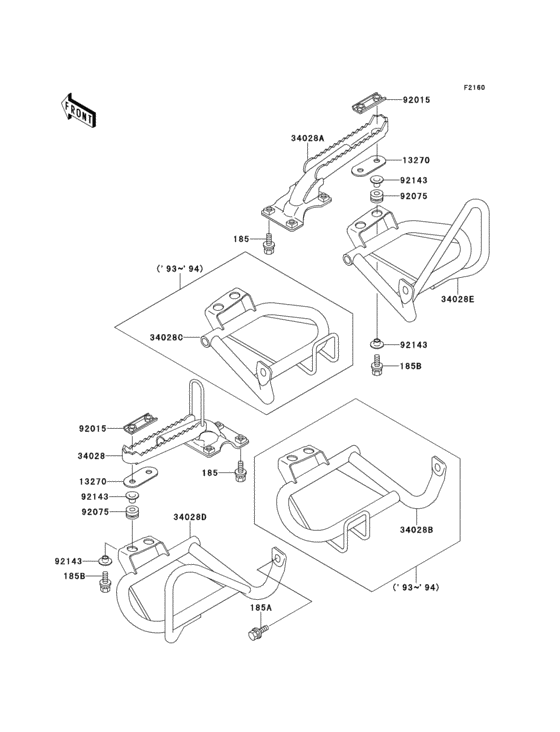

Footrests Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Frame
- LF400B 600001 - 600700
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
185
|
185
185J0820 BOLT-UPSET-WSP-SMALL, |
185J0820 |
US $4.12 |
||
| replacement | |||||
|
185
|
185
185BB0820 BOLT-UPSET-WSP-SMALL, |
185BB0820 |
from US $1.24 |
||
|
185A
|
185A
185BB0825 BOLT-UPSET-WSP-SMALL, |
185BB0825 |
from US $1.40 |
||
|
185B
|
185B
185J0840 BOLT-UPSET-WSP-SMALL, |
185J0840 |
US $3.47 |
||
|
13270
|
13270
13270-1066 PLATE |
13270-1066 |
US $5.36 |
||
|
34028
|
34028
34028-1271 STEP |
34028-1271 |
from US $74.72 |
||
|
34028A
|
34028A
34028-1355 STEP,RH |
34028-1355 |
US $74.72 |
||
|
34028B
|
34028B
34028-1395 STEP,FOOT BOARD,LH |
34028-1395 |
US $79.65 |
||
|
34028C
|
34028C
34028-1396 STEP,FOOT BOARD,RH |
34028-1396 |
US $79.65 |
||
|
92015
|
92015
92015-1732 NUT |
92015-1732 |
from US $6.68 |
||
|
92075
|
92075
92075-1736 DAMPER |
92075-1736 |
from US $3.96 |
||
|
92143
|
92143
92027-1653 COLLAR,FLNGD,8.8X10.6 |
92027-1653 |
from US $6.81 |
||
