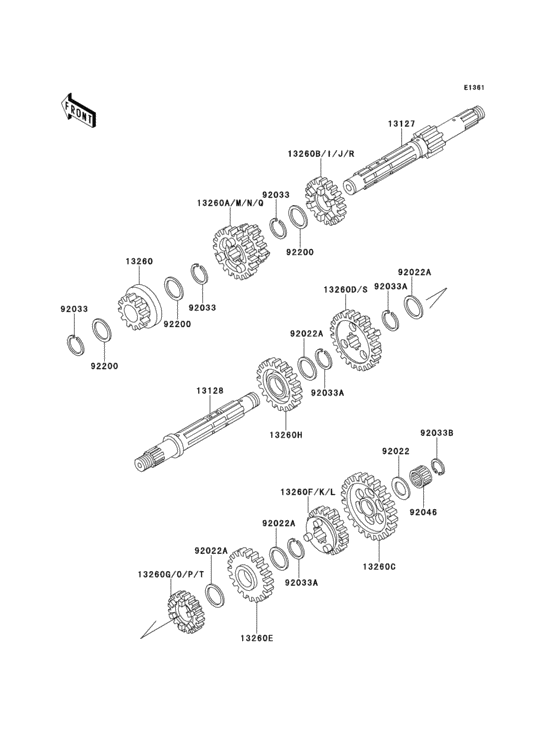

Transmission Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Frame
- LF400B 600001 - 600700
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13127
|
13127
13127-1211 SHAFT-TRANSMISSION IN |
13127-1211 |
US $190.87 |
||
|
13128
|
13128
13128-1185 SHAFT-TRANSMISSION OU |
13128-1185 |
US $169.33 |
||
|
13260
|
13260
13260-1211 GEAR,INPUT 2ND,16T |
13260-1211 |
from US $83.82 |
||
|
13260A
|
13260A
13260-1212 GEAR,INPUT 3RD&TOP,21 |
13260-1212 |
US $135.61 |
||
|
13260B
|
13260B
13260-1213 GEAR,INPUT 4TH,25T |
13260-1213 |
US $107.44 |
||
|
13260C
|
13260C
13260-1214 GEAR,OUTPUT LOW,42T |
13260-1214 |
US $131.53 |
||
|
13260D
|
13260D
13260-1215 GEAR,OUTPUT 2ND,36T |
13260-1215 |
US $129.15 |
||
|
13260E
|
13260E
13260-1216 GEAR,OUTPUT 3RD,32T |
13260-1216 |
US $117.20 |
||
|
13260F
|
13260F
13260-1217 GEAR,OUTPUT 4TH,28T |
13260-1217 |
US $107.44 |
||
|
13260G
|
13260G
13260-1218 GEAR,OUTPUT TOP,24T |
13260-1218 |
US $112.84 |
||
|
13260H
|
13260H
13260-1219 GEAR,REVERSE,31T |
13260-1219 |
US $104.33 |
||
|
13260J
|
13260J
13260-1448 GEAR,INPUT 4TH,26T |
13260-1448 |
US $107.44 |
||
|
13260L
|
13260L
13260-1449 GEAR,OUTPUT 4TH,27T |
13260-1449 |
US $109.53 |
||
|
13260N
|
13260N
13260-1450 GEAR,INPUT 3RD&TOP,21 |
13260-1450 |
US $129.15 |
||
|
13260P
|
13260P
13260-1451 GEAR,OUTPUT TOP,26T |
13260-1451 |
US $107.44 |
||
|
92022
|
92022
92022-112 WASHER THRUST |
92022-112 |
from US $5.54 |
||
|
92022A
|
92022A
92022-159 WASHER-PLAIN 25MM |
92022-159 |
from US $5.39 |
||
|
92033
|
92033
92033-025 CIRCLIP,25MM |
92033-025 |
from US $3.73 |
||
|
92033A
|
92033A
92033-026 CIRCLIP |
92033-026 |
from US $6.72 |
||
|
92033B
|
92033B
92033-029 CIRCLIP,18MM |
92033-029 |
from US $6.34 |
||
|
92046
|
92046
92046-1170 BEARING-NEEDLE,KT2026 |
92046-1170 |
from US $16.95 |
||
|
92200
|
92200
92200-1125 WASHER,22.3X29X1.0 |
92200-1125 |
US $3.57 |
