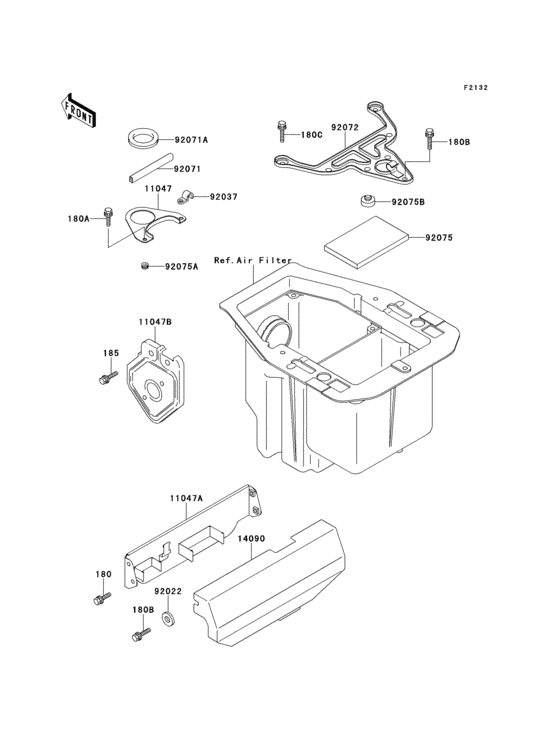

Battery case Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1A
- Engine Capacity
- 391
- Year
- 1993
- Sales region
- Australia
- Colour
- Moon Beam Gray (SK)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180D0612 BOLT-UPSET-WS |
180D0612 |
US $2.81 |
||
| replacement | |||||
|
180
|
180
180AA0612 BOLT-UPSET-WS |
180AA0612 |
from US $1.24 |
||
|
180A
|
180A
180G0614 BOLT-UPSET-WS,6X14 |
180G0614 |
US $2.79 |
||
| replacement | |||||
|
180A
|
180A
180BA0614 BOLT-UPSET-WS,6X14 |
180BA0614 |
from US $0.63 |
||
|
180B
|
180B
180G0616 BOLT-UPSET-WS,6X16 |
180G0616 |
US $1.84 |
||
| replacement | |||||
|
180B
|
180B
180BA0616 BOLT-UPSET-WS,6X16 |
180BA0616 |
from US $1.11 |
||
|
180C
|
180C
180G0620 BOLT-UPSET-WS,6X20 |
180G0620 |
US $2.70 |
||
| replacement | |||||
|
180C
|
180C
180BA0620 BOLT-UPSET-WS,6X20 |
180BA0620 |
from US $1.24 |
||
|
185
|
185
185C0816 BOLT-UPSET-WSP-SMALL |
185C0816 |
from US $1.43 |
||
| replacement | |||||
|
185
|
185
185AB0816 BOLT-UPSET-WSP-SMALL |
185AB0816 |
from US $1.24 |
||
|
11047
|
11047
11047-1573 BRACKET,RESERVOIR TAN |
11047-1573 |
US $11.48 |
||
|
11047A
|
11047A
11047-1579 BRACKET,ELECTRIC BASE |
11047-1579 |
US $46.44 |
||
|
11047B
|
11047B
11047-1659 BRACKET,REGULATOR |
11047-1659 |
US $19.51 |
||
|
14090
|
14090
14090-1154 COVER,ELECTRIC |
14090-1154 |
US $36.56 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.82 |
||
|
92037
|
92037
92037-3730 CLAMP |
92037-3730 |
from US $4.46 |
||
|
92071
|
92071
92071-1198 GROMMET |
92071-1198 |
from US $3.62 |
||
|
92071A
|
92071A
92071-3731 GROMMET,ENGINE HOOD |
92071-3731 |
US $5.86 |
||
|
92072
|
92072
92072-1289 BAND,BATTERY |
92072-1289 |
US $39.56 |
||
|
92075
|
92075
92075-1997 DAMPER,BATTERY |
92075-1997 |
from US $5.28 |
||
|
92075A
|
92075A
92075-222 DAMPER RUBBER,CASE |
92075-222 |
from US $4.12 |
||
|
92075B
|
92075B
92075-281 DAMPER RUBBER |
92075-281 |
from US $3.64 |
||
