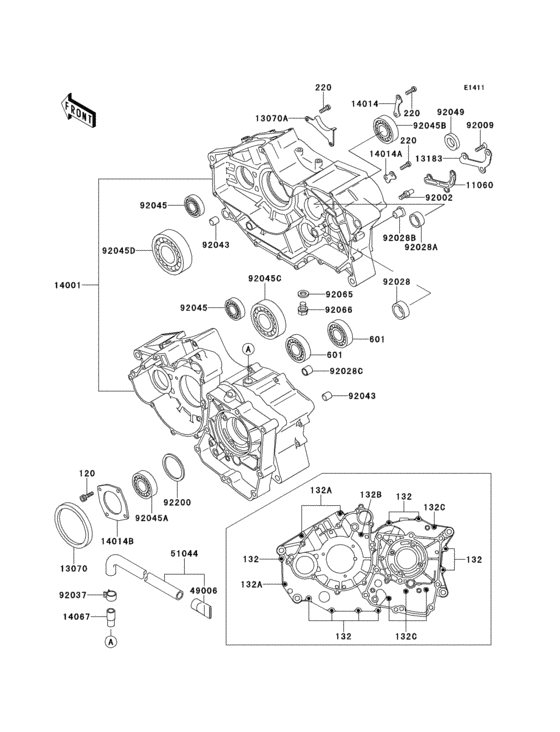

Crankcase Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1A
- Engine Capacity
- 391
- Year
- 1993
- Sales region
- Australia
- Colour
- Moon Beam Gray (SK)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0616 BOLT,SOCKET,6X16 |
120P0616 |
from US $1.43 |
||
| replacement | |||||
|
120
|
120
120CA0616 BOLT-SOCKET,6X16 |
120CA0616 |
from US $1.11 |
||
|
132
|
132
132Y0635
BOLT-FLANGED-SMALL
|
132Y0635 |
— | ||
| replacement | |||||
|
132
|
132
132BD0635 BOLT-FLANGED-SMALL |
132BD0635 |
from US $1.27 |
||
|
132A
|
132A
132Y0675 BOLT-FLANGED-SMALL |
132Y0675 |
from US $1.90 |
||
| replacement | |||||
|
132A
|
132A
132BD0675 BOLT-FLANGED-SMALL |
132BD0675 |
from US $1.43 |
||
|
132B
|
132B
132Y0685 BOLT-FLANGED-SMALL |
132Y0685 |
US $4.61 |
||
| replacement | |||||
|
132B
|
132B
132BD0685 BOLT-FLANGED-SMALL |
132BD0685 |
from US $1.56 |
||
|
132C
|
132C
132Y0695 BOLT-FLANGED-SMALL |
132Y0695 |
US $4.84 |
||
| replacement | |||||
|
132C
|
132C
132BD0695 BOLT-FLANGED-SMALL |
132BD0695 |
from US $1.56 |
||
|
220
|
220
220B0614
SCREW-PAN-CROS,6X14
|
220B0614 |
— | ||
| replacement | |||||
|
220
|
220
220AA0614 SCREW-PAN-CROS,6X14 |
220AA0614 |
from US $0.95 |
||
|
601
|
601
601A6203Z BEARING,BALL,#6203Z |
601A6203Z |
from US $14.80 |
||
|
11060
|
11060
11060-1207 GASKET,OIL LINE |
11060-1207 |
US $3.40 |
||
|
13070
|
13070
13070-1254 GUIDE |
13070-1254 |
US $53.96 |
||
|
13070A
|
13070A
13070-1255 GUIDE,CHAIN |
13070-1255 |
from US $4.59 |
||
|
13183
|
13183
13183-1725 PLATE,OIL LINE |
13183-1725 |
US $7.52 |
||
|
14001
|
14001
14001-5308 SET-CRANKCASE |
14001-5308 |
US $707.42 |
||
|
14014
|
14014
14014-1069 PLATE-POSITION |
14014-1069 |
from US $3.57 |
||
|
14014A
|
14014A
14014-1107 PLATE-POSITION |
14014-1107 |
US $3.33 |
||
|
14014B
|
14014B
14014-1108 PLATE-POSITION |
14014-1108 |
US $19.48 |
||
|
14067
|
14067
14067006 BREATHER JOINT |
14067006 |
from US $15.05 |
||
|
49006
|
49006
49006-1199 BOOT |
49006-1199 |
from US $5.76 |
||
|
51044
|
51044
51044-1118 TUBE-ASSY |
51044-1118 |
US $36.09 |
||
|
92002
|
92002
92002-1601 BOLT,RETURN SPRING |
92002-1601 |
US $6.21 |
||
| replacement | |||||
|
92002
|
92002
92150-1467 BOLT,RETURN SPRING |
92150-1467 |
from US $4.75 |
||
|
92009
|
92009
92009-1349 SCREW,6X14 |
92009-1349 |
from US $2.65 |
||
|
92028
|
92028
92028-131 BUSHING |
92028-131 |
from US $23.64 |
||
|
92028A
|
92028A
92028-132 BUSHING |
92028-132 |
from US $23.64 |
||
|
92028B
|
92028B
92028-1386 BUSHING |
92028-1386 |
from US $10.27 |
||
|
92028C
|
92028C
92028-1505 BUSHING,14X16X15 |
92028-1505 |
from US $5.44 |
||
|
92037
|
92037
92037-1860
CLAMP
|
92037-1860 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0329 CLAMP |
92171-0329 |
from US $5.39 |
||
|
92043
|
92043
92043-1279 PIN,11.5X14X14 |
92043-1279 |
from US $3.17 |
||
|
92045
|
92045
92045-1142 BEARING-BALL,TMB304CC |
92045-1142 |
from US $32.04 |
||
|
92045A
|
92045A
92045-1254 BEARING-BALL,6305RHR4 |
92045-1254 |
from US $36.35 |
||
|
92045B
|
92045B
92045-1255 BEARING-BALL,63/22 |
92045-1255 |
US $23.85 |
||
|
92045C
|
92045C
92045-1257 BEARING-BALL,6307SH2- |
92045-1257 |
from US $44.78 |
||
|
92045D
|
92045D
92045-1258 BEARING-BALL,6208RSH2 |
92045-1258 |
from US $44.78 |
||
|
92049
|
92049
92049-1393 SEAL-OIL,AC1013A1 |
92049-1393 |
US $6.88 |
||
|
92065
|
92065
92065-097 GASKET,12X22X2,DRAIN PLUG |
92065-097 |
from US $1.61 |
||
|
92066
|
92066
92066-1174 PLUG,OIL DRAIN,12X15 |
92066-1174 |
from US $4.44 |
||
|
92200
|
92200
92200-1106 WASHER,50X60.5X0.5 |
92200-1106 |
US $5.94 |
||
