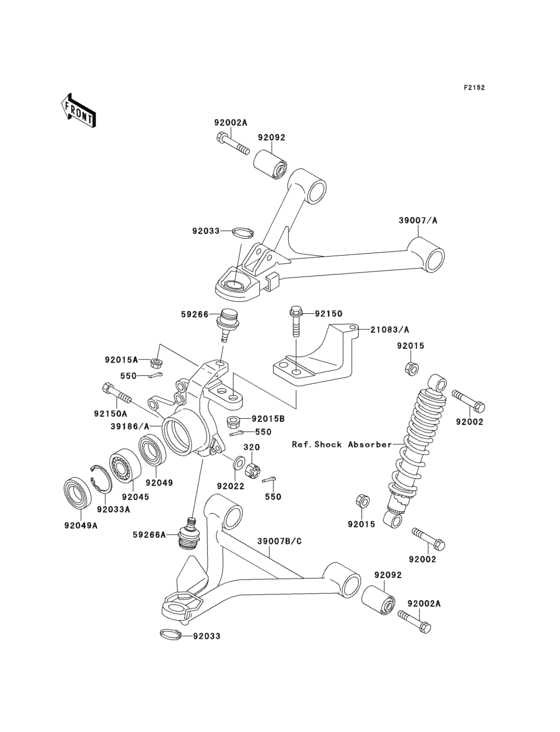

Front suspension Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1A
- Engine Capacity
- 391
- Year
- 1993
- Sales region
- Australia
- Colour
- Moon Beam Gray (SK)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
320
|
320
320H1000 NUT-CASTLE |
320H1000 |
US $6.80 |
||
| replacement | |||||
|
320
|
320
320BA1000 NUT-CASTLE |
320BA1000 |
from US $1.24 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
|
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
21083
|
21083
21083-1074 ARM,FR,LH |
21083-1074 |
from US $73.87 |
||
|
21083A
|
21083A
21083-1075 ARM,FR,RH |
21083-1075 |
from US $73.87 |
||
|
39007
|
39007
39007-1209 ARM-SUSP,FR,LH,UPP |
39007-1209 |
US $119.45 |
||
|
39007A
|
39007A
39007-1210 ARM-SUSP,FR,RH,UPP |
39007-1210 |
US $119.45 |
||
|
39007B
|
39007B
39007-1211 ARM-SUSP,FR,LH,LWR |
39007-1211 |
US $83.03 |
||
| replacement | |||||
|
39007B
|
39007B
39007-1246 ARM-SUSP,FR,LH,LWR |
39007-1246 |
from US $90.58 |
||
|
39007C
|
39007C
39007-1212 ARM-SUSP,FR,RH,LWR |
39007-1212 |
US $83.03 |
||
| replacement | |||||
|
39007C
|
39007C
39007-1247 ARM-SUSP,FR,RH,LWR |
39007-1247 |
from US $107.59 |
||
|
39186
|
39186
39186-1098 KNUCKLE,FR,LH |
39186-1098 |
from US $200.62 |
||
|
39186A
|
39186A
39186-1099 KNUCKLE,FR,RH |
39186-1099 |
from US $200.62 |
||
|
59266
|
59266
59266-1075
JOINT-BALL
|
59266-1075 |
— | ||
|
59266A
|
59266A
59266-1098 JOINT-BALL |
59266-1098 |
from US $66.41 |
||
|
92002
|
92002
92002-1740 BOLT,FLANGED,10X46 |
92002-1740 |
from US $4.05 |
||
|
92002A
|
92002A
92002-1861 BOLT,FLANGED,12X67 |
92002-1861 |
from US $7.44 |
||
|
92015
|
92015
92015-1597 NUT,LOCK,10MM |
92015-1597 |
from US $7.04 |
||
|
92015A
|
92015A
92015-1717 NUT,LOCK,FLANGED,10MM |
92015-1717 |
from US $6.34 |
||
|
92015B
|
92015B
92015-1808 NUT,LOCK,10MM |
92015-1808 |
US $3.29 |
||
| replacement | |||||
|
92015B
|
92015B
92210-1204 NUT,LOCK,10MM |
92210-1204 |
from US $5.59 |
||
|
92022
|
92022
92022-1829 WASHER,10.2X16X1 |
92022-1829 |
from US $2.69 |
||
|
92033
|
92033
92033-1218 RING-SNAP,30MM |
92033-1218 |
from US $4.05 |
||
|
92033A
|
92033A
92033-1274 RING-SNAP |
92033-1274 |
from US $5.60 |
||
|
92045
|
92045
92045-1222 BEARING-BALL,DAC3055C |
92045-1222 |
from US $75.11 |
||
|
92049
|
92049
92049-1321 SEAL-OIL |
92049-1321 |
from US $8.24 |
||
|
92049A
|
92049A
92049-1322 SEAL-OIL |
92049-1322 |
from US $8.71 |
||
|
92092
|
92092
92092-1065 BUSHING-RUBBER |
92092-1065 |
from US $8.55 |
||
|
92150
|
92150
92150-1215 BOLT,FLANGED,10X42 |
92150-1215 |
from US $6.06 |
||
|
92150A
|
92150A
92150-1226 BOLT |
92150-1226 |
from US $6.54 |
||
