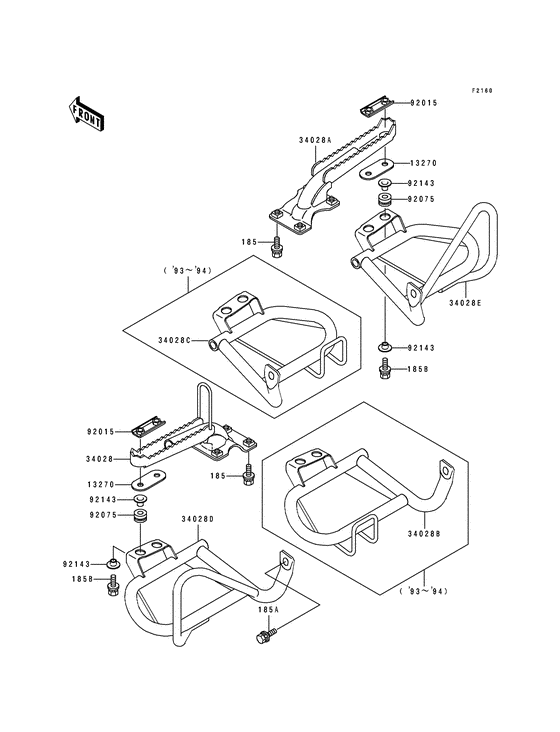

Footrests Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B3
- Engine Capacity
- 391
- Year
- 1995
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13270
|
13270
13270-1066 PLATE |
13270-1066 |
US $5.36 |
||
|
34028
|
34028
34028-1271 STEP |
34028-1271 |
from US $74.72 |
||
|
34028A
|
34028A
34028-1355 STEP,RHStep,rh; |
34028-1355 |
US $74.72 |
||
|
34028D
|
34028D
34028-1395 STEP,FOOT BOARD,LHStep,foot board,lh; |
34028-1395 |
US $79.65 |
||
|
34028E
|
34028E
34028-1396 STEP,FOOT BOARD,RHStep,foot board,rh; |
34028-1396 |
US $79.65 |
||
|
92015
|
92015
92015-1732 NUT |
92015-1732 |
from US $6.68 |
||
|
92075
|
92075
92075-1736 DAMPER |
92075-1736 |
from US $3.96 |
||
|
92143
|
92143
92143-1069 COLLAR,FLNGD,8.8X10.6Collar,muffler fitting; |
92143-1069 |
US $8.75 |
||
| replacement | |||||
|
92143
|
92143
92027-1653 COLLAR,FLNGD,8.8X10.6Collar,muffler fitting; |
92027-1653 |
from US $6.81 |
||
|
185
|
185
185J0820 BOLT-UPSET-WSP-SMALL,Bolt-upset-wsp-small,8x20; |
185J0820 |
US $4.12 |
||
| replacement | |||||
|
185
|
185
185BB0820 BOLT-UPSET-WSP-SMALL,Bolt-upset-wsp-small,8x20; |
185BB0820 |
from US $1.24 |
||
|
185A
|
185A
185J0825 BOLT-UPSET-WSP-SMALL,Bolt-upset-wsp-small,8x25; |
185J0825 |
US $4.12 |
||
| replacement | |||||
|
185A
|
185A
185BB0825 BOLT-UPSET-WSP-SMALL,Bolt-upset-wsp-small,8x25; |
185BB0825 |
from US $1.40 |
||
|
185B
|
185B
185J0840 BOLT-UPSET-WSP-SMALL,Bolt-upset-wsp-small,8x40; |
185J0840 |
US $3.47 |
||
