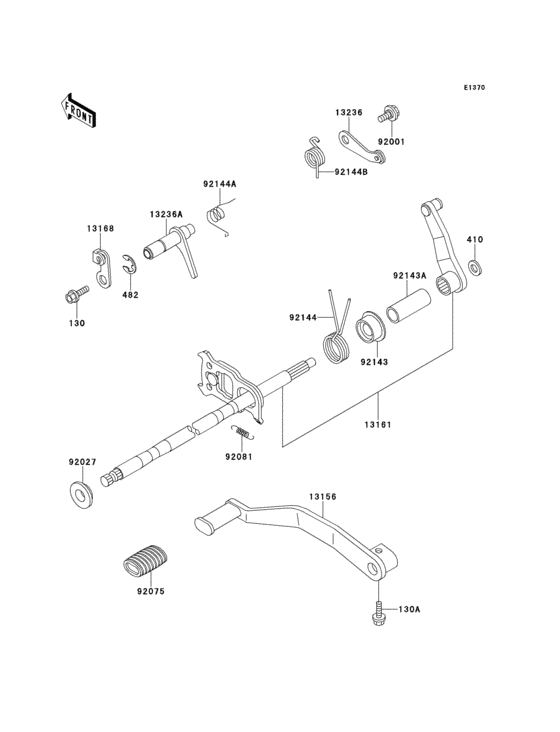

Gear change mechanism Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B3
- Engine Capacity
- 391
- Year
- 1995
- Sales region
- Canada
- Colour
- Colored Plastic Forest Bluish Green (59)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130C0610
BOLT-FLANGED
|
130C0610 |
— | ||
| replacements | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
130
|
130
130AB0610 BOLT-FLANGED |
130AB0610 |
from US $1.11 |
||
|
130A
|
130A
130S0620 BOLT-FLANGED,6X20,BLC |
130S0620 |
from US $1.43 |
||
| replacement | |||||
|
130A
|
130A
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
410
|
410
410B0800 WASHER-PLAIN-SMALL,8M |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
482
|
482
482L0100 RING, SNAP |
482L0100 |
from US $1.11 |
||
| replacement | |||||
|
482
|
482
482EA0100 CIRCLIP-TYPE-E,10MM |
482EA0100 |
from US $0.72 |
||
|
13156
|
13156
13156-1324
LEVER-CHANGE,PEDAL
|
13156-1324 |
— | ||
|
13161
|
13161
13161-1178
LEVER-COMP-CHANGE SHA
|
13161-1178 |
— | ||
| replacement | |||||
|
13161
|
13161
13161-1239
LEVER-COMP-CHANGE SHA
|
13161-1239 |
— | ||
|
13168
|
13168
13168-1476 LEVER,REVERSE |
13168-1476 |
US $4.30 |
||
|
13236
|
13236
13236-1231 LEVER-COMP,NEUTRAL |
13236-1231 |
US $10.53 |
||
|
13236A
|
13236A
13236-1232 LEVER-COMP,REVERSE |
13236-1232 |
US $25.85 |
||
|
92001
|
92001
92001-1715 BOLT |
92001-1715 |
from US $6.65 |
||
|
92027
|
92027
92027-1891 COLLAR,L=5.2 |
92027-1891 |
from US $7.16 |
||
|
92075
|
92075
92075-1585 DAMPER,CHANGE PEDAL |
92075-1585 |
US $6.49 |
||
| replacement | |||||
|
92075
|
92075
92161-2392 DAMPER,CHANGE PEDAL |
92161-2392 |
from US $7.79 |
||
|
92081
|
92081
92081-1753 SPRING,CHANGE LEVER |
92081-1753 |
from US $3.57 |
||
|
92143
|
92143
92143-1321 COLLAR |
92143-1321 |
from US $8.09 |
||
|
92143A
|
92143A
92143-1524
COLLAR,13.3X17.3X45.5
|
92143-1524 |
— | ||
|
92144
|
92144
92144-1359 SPRING,CHANGE SHAFT R |
92144-1359 |
from US $9.69 |
||
|
92144A
|
92144A
92144-1598 SPRING,REVERSE LEVER |
92144-1598 |
US $3.96 |
||
|
92144B
|
92144B
92144-1781 SPRING,NEUTRAL LEVER |
92144-1781 |
US $4.82 |
||
