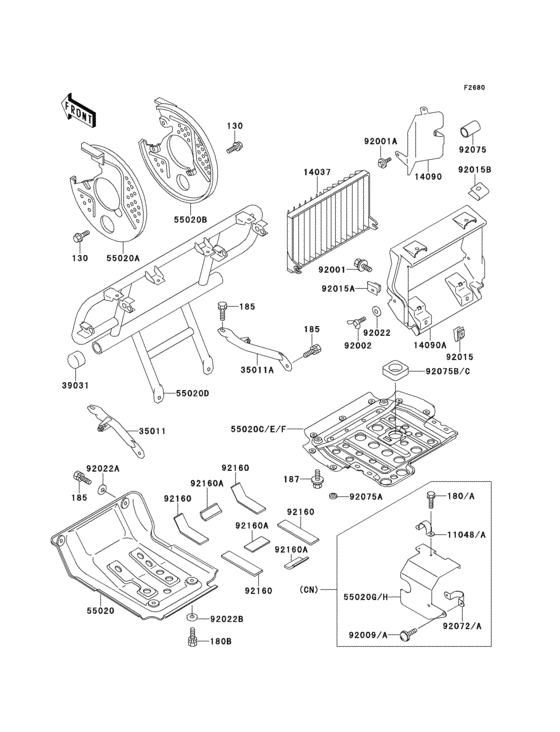

Guard(s)(1/2) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B3
- Engine Capacity
- 391
- Year
- 1995
- Sales region
- Canada
- Colour
- Colored Plastic Forest Bluish Green (59)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0610
BOLT-FLANGED,6X10
|
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10 |
130AA0610 |
from US $0.82 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
180
|
180
180C0510
Bolt-upset-ws,5x10,bl
|
180C0510 |
— | ||
|
180B
|
180B
180J0616 BOLT-UPSET-WS,6X16 |
180J0616 |
from US $1.43 |
||
| replacement | |||||
|
180B
|
180B
180BB0616 BOLT-UPSET-WS,6X16 |
180BB0616 |
from US $1.27 |
||
|
185
|
185
185J0820 BOLT-UPSET-WSP-SMALL, |
185J0820 |
US $4.12 |
||
| replacement | |||||
|
185
|
185
185BB0820 BOLT-UPSET-WSP-SMALL, |
185BB0820 |
from US $1.24 |
||
|
187
|
187
187J0616 BOLT-UPSET-WSP |
187J0616 |
US $0.92 |
||
| replacement | |||||
|
187
|
187
187BB0616 BOLT-UPSET-WSP |
187BB0616 |
from US $0.92 |
||
|
11048
|
11048
11048-1228
ブラケツト，スノ- ガ-ド
|
11048-1228 |
— | ||
|
14037
|
14037
14037-1154 SCREEN |
14037-1154 |
US $30.80 |
||
|
14090
|
14090
14090-1225 COVER,RADIATOR |
14090-1225 |
US $30.60 |
||
|
14090A
|
14090A
14090-1490 COVER,RADIATOR |
14090-1490 |
US $61.94 |
||
|
35011
|
35011
35011-1595 STAY,FRONT GUARD,LH |
35011-1595 |
US $29.59 |
||
|
35011A
|
35011A
35011-1596 STAY,FRONT GUARD,RH |
35011-1596 |
US $29.59 |
||
|
39031
|
39031
39031-1059 CAP-END,BUMPER PIPE |
39031-1059 |
from US $5.44 |
||
|
55020
|
55020
55020-1303 GUARD,FRONT DIFF |
55020-1303 |
from US $53.19 |
||
|
55020A
|
55020A
55020-1304 GUARD,FRONT DISC,LH |
55020-1304 |
from US $27.84 |
||
|
55020B
|
55020B
55020-1305 GUARD,FRONT DISC,RH |
55020-1305 |
from US $27.84 |
||
|
55020D
|
55020D
55020-1417
GUARD,FR
|
55020-1417 |
— | ||
|
55020E
|
55020E
55020-1468 GUARD,ENGINE |
55020-1468 |
US $58.81 |
||
|
55020G
|
55020G
55020-1486
Guard,snow
|
55020-1486 |
— | ||
|
92001
|
92001
92001-1851 BOLT,W/SP,6X16 |
92001-1851 |
US $3.29 |
||
| replacement | |||||
|
92001
|
92001
92001-1763 BOLT,W/SP,6X16 |
92001-1763 |
from US $3.01 |
||
|
92001A
|
92001A
92001-1944
BOLT,W/SP,6X18
|
92001-1944 |
— | ||
| replacement | |||||
|
92001A
|
92001A
92001-1764
BOLT,W/SP,6X18
|
92001-1764 |
— | ||
|
92002
|
92002
92002-1599
BOLT,WING
|
92002-1599 |
— | ||
|
92009
|
92009
92009-1480 SCREW |
92009-1480 |
from US $2.38 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $4.25 |
||
|
92015A
|
92015A
92015-1602 NUT,6MM |
92015-1602 |
from US $3.96 |
||
|
92015B
|
92015B
92015-1691 NUT,8MM |
92015-1691 |
from US $4.82 |
||
|
92022
|
92022
92022-1258 WASHER,7.2X21 |
92022-1258 |
US $3.37 |
||
|
92022A
|
92022A
92022-1317 WASHER,8.5X20X1.6,BLA |
92022-1317 |
from US $2.69 |
||
|
92022B
|
92022B
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.82 |
||
|
92072
|
92072
92072-1252 BAND |
92072-1252 |
from US $6.68 |
||
|
92075
|
92075
92075-1369 DAMPER,FUEL TANK,FR |
92075-1369 |
from US $4.75 |
||
|
92075A
|
92075A
92075-1573 DAMPER,INTAKE COVER |
92075-1573 |
US $3.37 |
||
|
92075B
|
92075B
92075-1872 DAMPER |
92075-1872 |
from US $12.28 |
||
|
92160
|
92160
92160-1101 DAMPER |
92160-1101 |
US $5.51 |
||
| replacement | |||||
|
92160
|
92160
92075-1829 DAMPER |
92075-1829 |
from US $4.05 |
||
|
92160A
|
92160A
92160-1102 DAMPER |
92160-1102 |
US $2.66 |
||
| replacement | |||||
|
92160A
|
92160A
92075-1830 DAMPER |
92075-1830 |
from US $3.80 |
||
