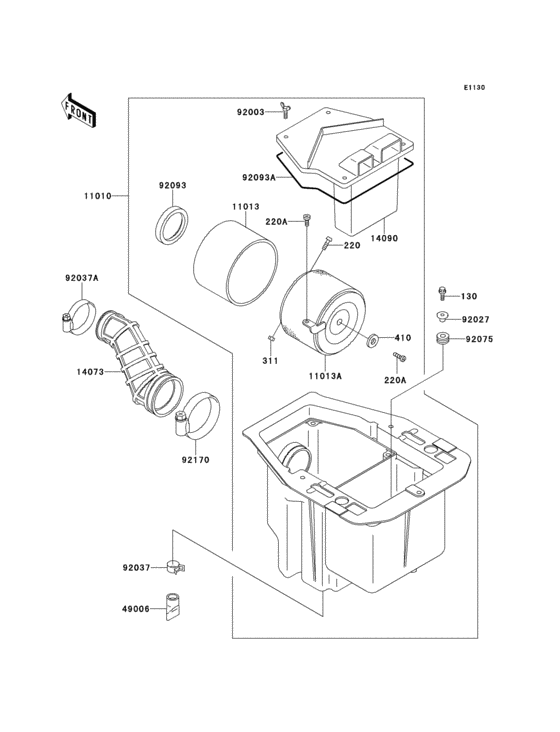

Air cleaner Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B3
- Engine Capacity
- 391
- Year
- 1995
- Frame
- LF400B 601401 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0618 BOLT-FLANGED,6X18 |
130BA0618 |
from US $0.79 |
||
|
220
|
220
220AA0516 SCREW-PAN-CROS |
220AA0516 |
from US $0.79 |
||
|
220A
|
220A
220AA0614 SCREW-PAN-CROS,6X14 |
220AA0614 |
from US $0.95 |
||
|
311
|
311
311AA0500 NUT-HEX,5MM |
311AA0500 |
from US $0.78 |
||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
11010
|
11010
11010-1445 FILTER-ASSY-AIR |
11010-1445 |
US $240.75 |
||
|
11013
|
11013
11013-1205 Element-air filter |
11013-1205 |
from US $8.38 |
||
|
11013A
|
11013A
11013-1217 Element-air filter |
11013-1217 |
from US $42.86 |
||
|
14073
|
14073
14073-1497 DUCT,AIR FILTER |
14073-1497 |
from US $55.44 |
||
|
14090
|
14090
14090-1652 COVER,AIR FILTER |
14090-1652 |
US $31.23 |
||
|
49006
|
49006
49006-1199 BOOT |
49006-1199 |
from US $5.76 |
||
|
92003
|
92003
92003-199
BOLT,CLNR ELEMENT
|
92003-199 |
— | ||
|
92027
|
92027
92027-1651 COLLAR,FLANGED,L=12.1 |
92027-1651 |
from US $6.02 |
||
|
92037
|
92037
92171-1571 CLAMP |
92171-1571 |
from US $5.28 |
||
|
92037A
|
92037A
92037-1586 CLAMP,RESERVE TANK |
92037-1586 |
from US $9.19 |
||
|
92075
|
92075
92075-222 DAMPER RUBBER,CASE |
92075-222 |
from US $4.12 |
||
|
92093
|
92093
92093-1322 SEAL,DUST |
92093-1322 |
from US $5.90 |
||
|
92093A
|
92093A
92093-1331 SEAL,AIR FILTER CASE |
92093-1331 |
US $3.76 |
||
|
92170
|
92170
92170-1307 CLAMP |
92170-1307 |
from US $11.98 |
