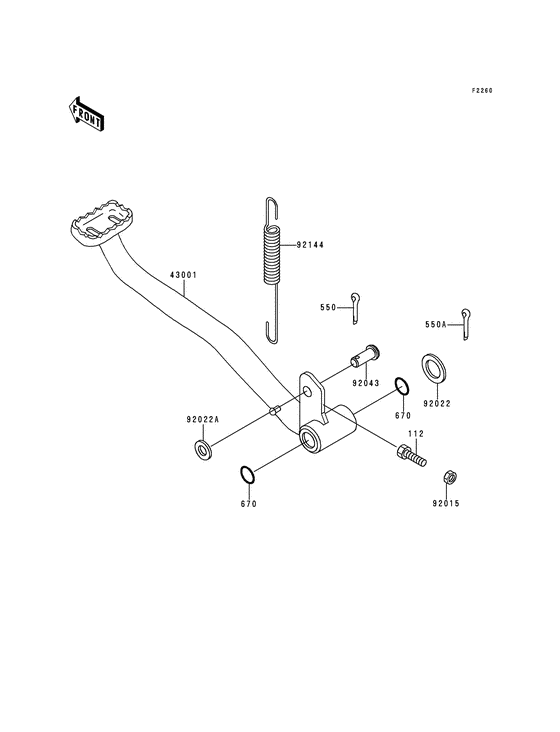

Brake pedal Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B4
- Engine Capacity
- 391
- Year
- 1996
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112D0622 BOLT-UPSET |
112D0622 |
US $4 |
||
| replacement | |||||
|
112
|
112
112AA0622 BOLT-UPSET |
112AA0622 |
from US $0.94 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin-cotter,2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin-cotter,2.0x15; |
550AA2015 |
from US $0.63 |
||
|
550A
|
550A
550D2525 PIN-COTTER,2.5X25Pin-cotter,2.5x25; |
550D2525 |
from US $1.27 |
||
| replacement | |||||
|
550A
|
550A
550AA2525 PIN-COTTER,2.5X25Pin-cotter,2.5x25; |
550AA2525 |
from US $0.63 |
||
|
670
|
670
670B2015 O RING,15MMO ring,15mm; |
670B2015 |
from US $1.77 |
||
|
43001
|
43001
43001-1311 LEVER-BRAKE,PEDALLever-brake,pedal; |
43001-1311 |
US $77.09 |
||
|
92015
|
92015
92015-1410 NUT,6MMNut,6mm; |
92015-1410 |
from US $2.33 |
||
|
92022
|
92022
92022-1049 WASHER,15.5X24X1.6Washer,15.5x24x1.6; |
92022-1049 |
from US $3.57 |
||
|
92022A
|
92022A
92022-1582
WASHER-PLAIN-SMALL,8M
Washer,8.5x16x1.2; |
92022-1582 |
— | ||
| replacement | |||||
|
92022A
|
92022A
410AA0800 WASHER-PLAIN-SMALL,8MWasher,8.5x16x1.2; |
410AA0800 |
from US $0.63 |
||
|
92043
|
92043
92043-1013 PINPin,8x16; |
92043-1013 |
from US $6.65 |
||
|
92144
|
92144
92144-1317 SPRING,BRAKE PEDAL RESpring,brake pedal return; |
92144-1317 |
from US $6.06 |
||
