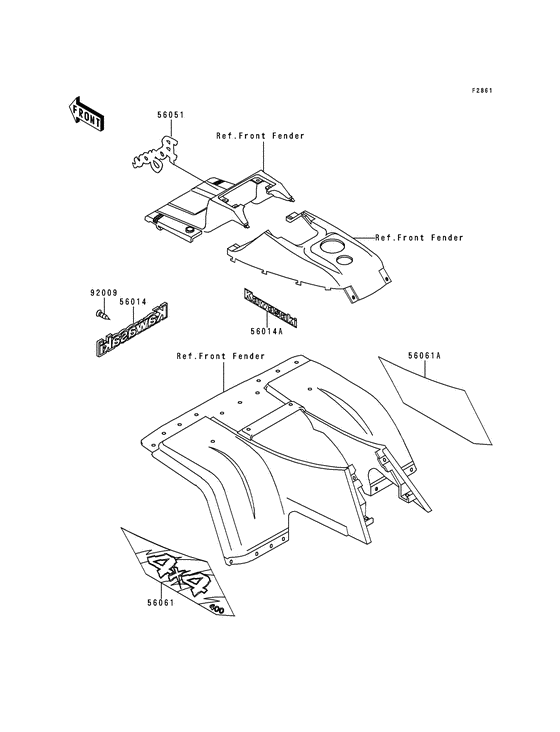

Decals (Ebony; klf400-b4) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B4
- Engine Capacity
- 391
- Year
- 1996
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56014
|
56014
56014-1278 EMBLEM,KAWASAKIEmblem,kawasaki; |
56014-1278 |
US $41 |
||
|
56014A
|
56014A
56014-1307 EMBLEM,KAWASAKIEmblem,kawasaki; |
56014-1307 |
from US $5.10 |
||
|
56051
|
56051
56051-1172 MARK,BAYOUMark,bayou; |
56051-1172 |
US $7 |
||
|
56061
|
56061
56061-1445 PATTERN,FR FENDER,LHPattern,fr fender,lh; |
56061-1445 |
US $61.60 |
||
|
56061A
|
56061A
56061-1446 PATTERN,FR FENDER,RHPattern,fr fender,rh; |
56061-1446 |
US $61.60 |
||
|
92009
|
92009
92009-1680 SCREW,TAPPING,3X10Screw,tapping,3x10; |
92009-1680 |
US $1.66 |
