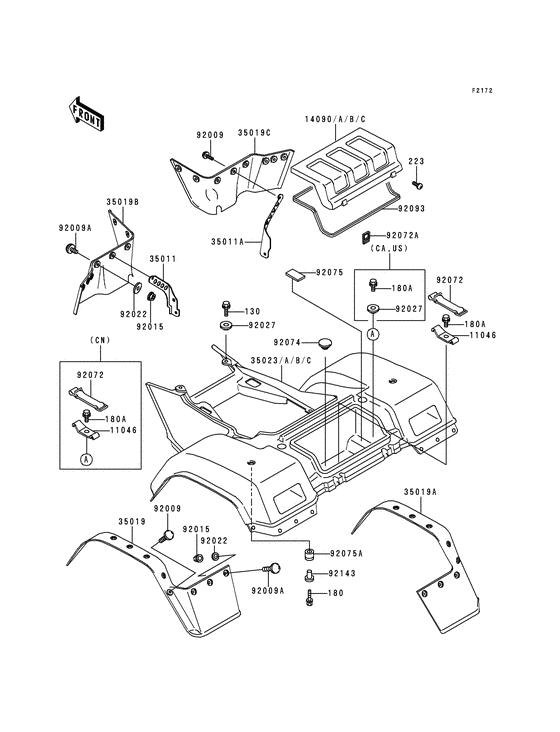

Rear fender Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B4
- Engine Capacity
- 391
- Year
- 1996
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130C0618 BOLT-FLANGED,6X18 |
130C0618 |
US $11.90 |
||
| replacement | |||||
|
130
|
130
130BB0618 BOLT-FLANGED,6X18 |
130BB0618 |
from US $1.11 |
||
|
180
|
180
180C0635 BOLT-UPSET-WS,6X35Bolt-upset-ws,6x35; |
180C0635 |
US $2.86 |
||
|
180A
|
180A
180D0614
BOLT-UPSET-WS
|
180D0614 |
— | ||
| replacement | |||||
|
180A
|
180A
180AA0614 BOLT-UPSET-WS |
180AA0614 |
from US $1.09 |
||
|
223
|
223
223C0406 SCREW-PAN-WS-CROS,4X6Screw-pan-ws-cros,4x6; |
223C0406 |
from US $1.27 |
||
| replacement | |||||
|
223
|
223
223AB0406 SCREW-PAN-WS-CROS,4X6Screw-pan-ws-cros,4x6; |
223AB0406 |
from US $1.09 |
||
|
11046
|
11046
11046-1319 BRACKET,BANDBracket,band; |
11046-1319 |
from US $5.28 |
||
|
14090
|
14090
14090-1160-59 COVER,REAR FENDER,F.GCover,rear fender,f.green; |
14090-1160-59 |
US $34.07 |
||
|
14090B
|
14090B
14090-1160-6D
COVER,REAR FENDER,BLA
Cover,rear fender,black; |
14090-1160-6D |
— | ||
|
35011
|
35011
35011-1618 STAY,RR FENDER,LHStay,rr fender,lh; |
35011-1618 |
US $22.43 |
||
|
35011A
|
35011A
35011-1619 STAY,RR FENDER,RHStay,rr fender,rh; |
35011-1619 |
US $20.95 |
||
|
35019
|
35019
35019-1298-6Z FLAP,RR,LH,BLACKFlap,rr,lh,black; |
35019-1298-6Z |
from US $46.65 |
||
|
35019A
|
35019A
35019-1299-6Z FLAP,RR,RH,BLACKFlap,rr,rh,black; |
35019-1299-6Z |
from US $51.39 |
||
|
35019B
|
35019B
35019-1325-6Z FLAP,RR,LWR,LH,F.BLACFlap,rr,lwr,lh,f.black; |
35019-1325-6Z |
from US $35.13 |
||
|
35019C
|
35019C
35019-1326-6Z
FLAP,RR,LWR,RH,F.BLAC
Flap,rr,lwr,rh,f.black; |
35019-1326-6Z |
— | ||
|
35023
|
35023
35023-1332-59
FENDER-REAR,F.GREEN
Fender-rear,f.green; |
35023-1332-59 |
— | ||
|
35023B
|
35023B
35023-1332-6D FENDER-REAR,BLACKFender-rear,black; |
35023-1332-6D |
US $229.68 |
||
|
92009
|
92009
92009-1256 SCREW,6X22,BLACKScrew,6x22,black; |
92009-1256 |
from US $1.74 |
||
|
92009A
|
92009A
92009-1621
SCREW
Screw,6x16; |
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREWScrew,6x16; |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1675 NUTNut,lock,flanged,6mm; |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-1093 WASHER,6.5X16X1.0Washer,6.5x16x1.0; |
92022-1093 |
from US $1.43 |
||
|
92027
|
92027
92027-122 COLLARCollar,l=4.7; |
92027-122 |
from US $5.07 |
||
|
92072
|
92072
92072-1085 BAND,RESERVE TANK |
92072-1085 |
from US $11.25 |
||
|
92072A
|
92072A
92072-1291 BAND,REAR FENDER COVEBand,rear fender cover; |
92072-1291 |
from US $9.49 |
||
|
92074
|
92074
92074-038 RUBBER PLUGPlug,11x3.2; |
92074-038 |
from US $3.89 |
||
|
92075
|
92075
92075-1830 DAMPER |
92075-1830 |
from US $3.80 |
||
|
92075A
|
92075A
92075-1936 DAMPER |
92075-1936 |
from US $2.95 |
||
|
92093
|
92093
92093-1262 SEAL,REAR FENDER COVESeal,rear fender cover; |
92093-1262 |
from US $9.01 |
||
|
92143
|
92143
92143-1100 COLLAR,L=19.6Collar,l=19.6; |
92143-1100 |
from US $4.82 |
||
