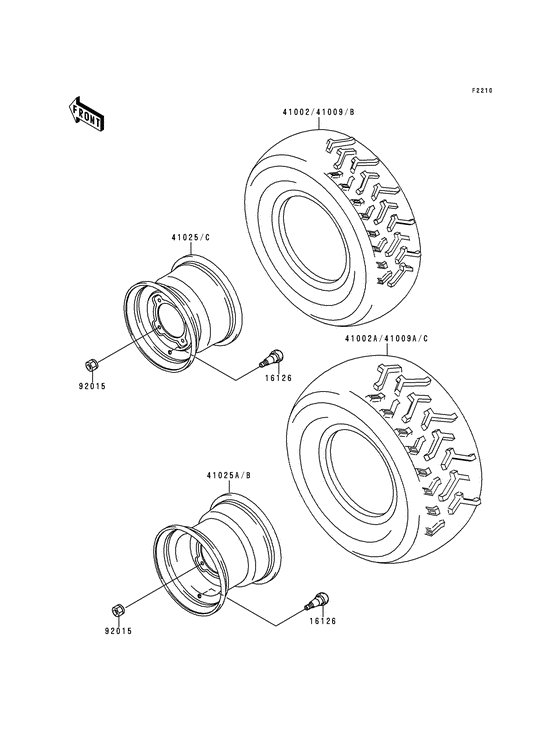

Wheels/tires Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B4
- Engine Capacity
- 391
- Year
- 1996
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIRE |
16126-4001 |
from US $12.48 |
||
|
41002
|
41002
41002-1678
Tire,fr,at24x8-11,kt9
Tire,fr,at24x8-11,kt962(d); |
41002-1678 |
— | ||
| replacement | |||||
|
41002
|
41002
41009-1163
TIRE,FR
Tire,fr,at24x8-11,kt962(d); |
41009-1163 |
— | ||
|
41002A
|
41002A
41002-1890 Tire,rr,at24x10-11,ktTire,rr,at24x10-11,kt962a(d); |
41002-1890 |
US $103.30 |
||
| replacement | |||||
|
41002A
|
41002A
41009-1164 TIRE,RRTire,rr,at24x10-11,kt962a(d); |
41009-1164 |
US $134.37 |
||
|
41009
|
41009
41009-1075 TIRE,FRTire,fr,(good year); |
41009-1075 |
US $124.65 |
||
| replacement | |||||
|
41009
|
41009
41009-1163
TIRE,FR
Tire,fr,(good year); |
41009-1163 |
— | ||
|
41009A
|
41009A
41009-1076 TIRE,RRTire,rr,(good year); |
41009-1076 |
US $134.37 |
||
| replacement | |||||
|
41009A
|
41009A
41009-1164 TIRE,RRTire,rr,(good year); |
41009-1164 |
US $134.37 |
||
|
41025
|
41025
41025-1196-5A RIM,FR,11X6.5,SILVERRim,fr,11x6.5,silver no.40; |
41025-1196-5A |
US $119.86 |
||
| replacement | |||||
|
41025
|
41025
41025-1342-5A RIM,FR,11X6.5,SILVERRim,fr,11x6.5,silver no.40; |
41025-1342-5A |
from US $157 |
||
|
41025A
|
41025A
41025-1268-5A RIM,RR,11X8.0,SILVERRim,rr,11x8.0,silver no.40; |
41025-1268-5A |
US $119.86 |
||
| replacement | |||||
|
41025A
|
41025A
41025-1334-5A
RIM,RR,11X8.0,SILVER
Rim,rr,11x8.0,silver no.40; |
41025-1334-5A |
— | ||
|
92015
|
92015
92015-1808 NUT,LOCK,10MMNut,lock,10mm; |
92015-1808 |
US $3.29 |
||
| replacement | |||||
|
92015
|
92015
92210-1204 NUT,LOCK,10MMNut,lock,10mm; |
92210-1204 |
from US $5.59 |
||
