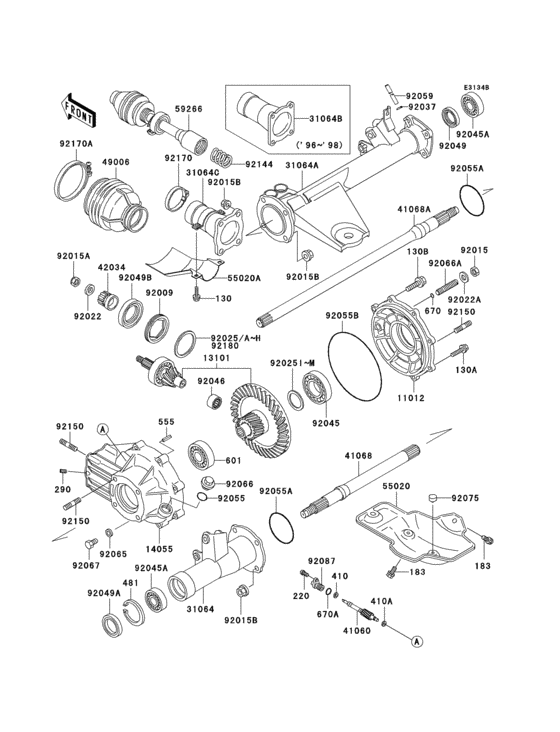

Drive shaft(1/2)(rear) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B4
- Engine Capacity
- 391
- Year
- 1996
- Sales region
- Europe
- Frame
- LF400B 602301 - 602700
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130A
|
130A
130CA0830 BOLT-FLANGED |
130CA0830 |
from US $1.27 |
||
|
130B
|
130B
130CA1035 BOLT-FLANGED |
130CA1035 |
from US $1.43 |
||
|
183
|
183
183BA0814 BOLT-UPSET-WS-SMALL |
183BA0814 |
from US $1.09 |
||
|
220
|
220
220AD0614 SCREW-PAN-CROS |
220AD0614 |
from US $1.09 |
||
|
290
|
290
290Q0612 SCREW-SET-SOCKET |
290Q0612 |
from US $3.27 |
||
|
410
|
410
410AA0500 W-PLAIN-S |
410AA0500 |
from US $0.78 |
||
|
410A
|
410A
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
481
|
481
92033-1043 RING,SNAP,52 M/M |
92033-1043 |
from US $5.54 |
||
|
555
|
555
555A0422 PIN-SPRING |
555A0422 |
from US $2.95 |
||
|
601
|
601
601B6007 BEARING-BALL |
601B6007 |
from US $22.61 |
||
|
670
|
670
670B1509 O RING,9MM |
670B1509 |
from US $2.53 |
||
|
670A
|
670A
670B2012 O RING,12MM |
670B2012 |
from US $2.84 |
||
|
11012
|
11012
11012-1651 CAP,GEAR CASE |
11012-1651 |
from US $126.91 |
||
|
13101
|
13101
13101-5084 GEAR-ASSY-BEVEL |
13101-5084 |
from US $606.64 |
||
|
14055
|
14055
14055-1089 CASE-GEAR,RR |
14055-1089 |
from US $160.19 |
||
|
31064
|
31064
31064-1098 PIPE-COMP,LH |
31064-1098 |
from US $123.82 |
||
|
31064A
|
31064A
31064-1099 PIPE-COMP,RH |
31064-1099 |
from US $205.58 |
||
|
31064B
|
31064B
31064-1128 PIPE-COMP,DRIVE SHAFT |
31064-1128 |
US $194.63 |
||
|
41060
|
41060
41060-1126 GEAR-METER SCREW |
41060-1126 |
from US $36.40 |
||
|
41068
|
41068
41068-1347 AXLE,LH |
41068-1347 |
from US $166.41 |
||
|
41068A
|
41068A
41068-1348
AXLE,RH
|
41068-1348 |
— | ||
|
42034
|
42034
42034-1104 COUPLING |
42034-1104 |
from US $44.78 |
||
|
49006
|
49006
49006-1237 BOOT,DRIVE SHAFT |
49006-1237 |
from US $26.55 |
||
|
55020
|
55020
55020-1306 GUARD,ENGINE |
55020-1306 |
from US $65 |
||
|
59266
|
59266
59266-1089 JOINT-BALL |
59266-1089 |
US $642.94 |
||
|
92009
|
92009
92009-1528 SCREW |
92009-1528 |
from US $17.73 |
||
|
92015
|
92015
92015-006 NUT 12MM |
92015-006 |
from US $3.64 |
||
|
92015A
|
92015A
92015-1182 NUT,12MM |
92015-1182 |
from US $4.44 |
||
|
92015B
|
92015B
92210-0276 NUT,LOCK,FLANGED,10MM |
92210-0276 |
from US $1.43 |
||
|
92022
|
92022
92022-1293 WASHER,12X3X25X3.2 |
92022-1293 |
from US $3.96 |
||
|
92022A
|
92022A
410AA1200 WASHER-PLAIN-SMALL,12 |
410AA1200 |
from US $0.95 |
||
|
92025
|
92025
92025-1669 SHIM,52.5X61.5X0.15 |
92025-1669 |
from US $6.68 |
||
|
92025A
|
92025A
92025-1670 SHIM,52.5X61.5X0.18 |
92025-1670 |
from US $6.68 |
||
|
92025B
|
92025B
92025-1671 SHIM,52.5X61.5X0.8 |
92025-1671 |
from US $6.68 |
||
|
92025C
|
92025C
92025-1672 SHIM,52.5X61.5X0.9 |
92025-1672 |
from US $6.68 |
||
|
92025D
|
92025D
92025-1673 SHIM,52.5X61.5X1.0 |
92025-1673 |
from US $6.68 |
||
|
92025E
|
92025E
92025-1674 SHIM,52.5X61.5X1.1 |
92025-1674 |
from US $8.09 |
||
|
92025F
|
92025F
92025-1675 SHIM,52.5X61.5X1.2 |
92025-1675 |
from US $8.09 |
||
|
92025G
|
92025G
92025-1676 SHIM,52.5X61.5X1.3 |
92025-1676 |
from US $8.09 |
||
|
92025H
|
92025H
92025-1677 SHIM,52.5X61.5X1.4 |
92025-1677 |
from US $8.09 |
||
|
92025I
|
92025I
92025-1849 SHIM,46X35.3X1.00 |
92025-1849 |
from US $6.51 |
||
|
92025J
|
92025J
92025-1850 SHIM,46X35.3X0.10 |
92025-1850 |
from US $2.95 |
||
|
92025K
|
92025K
92025-1851 SHIM,46X35.3X0.15 |
92025-1851 |
from US $2.95 |
||
|
92025L
|
92025L
92025-1856 SHIM,46X35.3X0.50 |
92025-1856 |
from US $2.95 |
||
|
92025M
|
92025M
92025-1857 SHIM,46.3X35.3X0.80 |
92025-1857 |
from US $2.95 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $4.95 |
||
|
92045
|
92045
92045-1110 BEARING-BALL |
92045-1110 |
from US $24.26 |
||
|
92045A
|
92045A
92045-1163 BEARING-BALL |
92045-1163 |
from US $29.38 |
||
|
92046
|
92046
92046-1183 BEARING-NEEDLE,NK20/1 |
92046-1183 |
US $35.93 |
||
|
92049
|
92049
92049-1236 SEAL-OIL |
92049-1236 |
from US $5.44 |
||
|
92049A
|
92049A
92049-1287 SEAL-OIL |
92049-1287 |
from US $8.24 |
||
|
92049B
|
92049B
92049-1310 SEAL-OIL,TC406510 |
92049-1310 |
from US $8.71 |
||
|
92055
|
92055
92055-1136 RING-O,25.7X2.4 |
92055-1136 |
from US $3.73 |
||
|
92055A
|
92055A
92055-1207 RING-O |
92055-1207 |
from US $3.73 |
||
|
92055B
|
92055B
92055-1411 RING-O,164.1X2.5 |
92055-1411 |
from US $7.13 |
||
|
92059
|
92059
92059-1879 TUBE 5X9X1240 |
92059-1879 |
US $19.33 |
||
| replacement | |||||
|
92059
|
92059
92059-1968 TUBE 5X9X1240 |
92059-1968 |
from US $19.33 |
||
|
92065
|
92065
92065-058 GASKET |
92065-058 |
from US $3.37 |
||
|
92066
|
92066
92066-1303 PLUG |
92066-1303 |
from US $13.19 |
||
|
92066A
|
92066A
92066-1305 PLUG |
92066-1305 |
from US $11.98 |
||
|
92067
|
92067
92067-001 PLUG, OIL DRAIN |
92067-001 |
from US $3.73 |
||
|
92075
|
92075
92075-021 DAMPER RUBB OIL TANK |
92075-021 |
from US $3.64 |
||
|
92087
|
92087
92087-1057 BUSHING-METER GEAR |
92087-1057 |
from US $13.38 |
||
|
92144
|
92144
92144-1278 SPRING |
92144-1278 |
from US $2.95 |
||
|
92150
|
92150
92150-1197 BOLT,10X22 |
92150-1197 |
from US $3.57 |
||
|
92170
|
92170
92037-1523 CLAMP |
92037-1523 |
from US $8.08 |
||
|
92170A
|
92170A
92037-1654 CLAMP |
92037-1654 |
from US $9.03 |
||
|
92180
|
92180
92180-1115 SHIM,52.5X61.5X0.10 |
92180-1115 |
US $9.27 |
||
