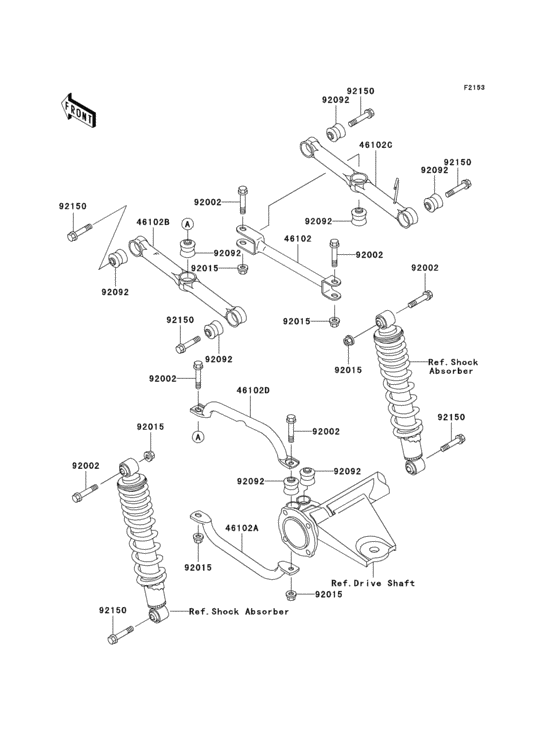

Rear suspension Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B4
- Engine Capacity
- 391
- Year
- 1996
- Sales region
- Europe
- Frame
- LF400B 602301 - 602700
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46102
|
46102
46102-1213 ROD,SUSPENSION,R.CROS |
46102-1213 |
from US $24.17 |
||
|
46102A
|
46102A
46102-1242 ROD,SUSP,RR,LH INSIDE |
46102-1242 |
from US $21.31 |
||
|
46102B
|
46102B
46102-1320 ROD,SUSPENSION,RR,LH, |
46102-1320 |
US $29.59 |
||
|
46102C
|
46102C
46102-1321 ROD,SUSPENSION,RR,RH, |
46102-1321 |
US $29.59 |
||
|
46102D
|
46102D
46102-1330 ROD,SUSPENSION LF.CRS |
46102-1330 |
from US $20.06 |
||
|
92002
|
92002
92002-1529 BOLT,FLANGED,10X53.5 |
92002-1529 |
from US $5.70 |
||
|
92015
|
92015
92015-1597 NUT,LOCK,10MM |
92015-1597 |
from US $7.04 |
||
|
92092
|
92092
92092-1064 BUSHING-RUBBER |
92092-1064 |
from US $16.13 |
||
|
92150
|
92150
92150-1048 BOLT,FLANGED,10X49 |
92150-1048 |
from US $4.05 |
