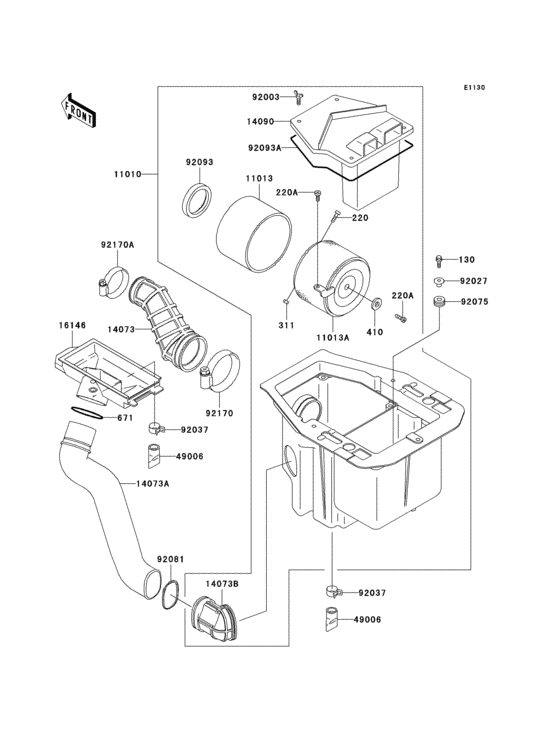

Air cleaner(klf400-b4/b5/b6) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B4
- Engine Capacity
- 391
- Year
- 1996
- Frame
- LF400B 602301 - 602700
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0618 BOLT-FLANGED,6X18 |
130BA0618 |
from US $0.79 |
||
|
220
|
220
220AA0516 SCREW-PAN-CROS |
220AA0516 |
from US $0.79 |
||
|
220A
|
220A
220AA0614 SCREW-PAN-CROS,6X14 |
220AA0614 |
from US $0.95 |
||
|
311
|
311
311AA0500 NUT-HEX,5MM |
311AA0500 |
from US $0.78 |
||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
671
|
671
671B2550 O RING |
671B2550 |
from US $2.92 |
||
|
11010
|
11010
11010-1582 FILTER-ASSY-AIR |
11010-1582 |
US $262.64 |
||
|
11013
|
11013
11013-1205 Element-air filter |
11013-1205 |
from US $8.38 |
||
|
11013A
|
11013A
11013-1217 Element-air filter |
11013-1217 |
from US $42.86 |
||
|
14073
|
14073
14073-1497 DUCT,AIR FILTER |
14073-1497 |
from US $55.44 |
||
|
14073A
|
14073A
14073-1638 DUCT,SNORKEL |
14073-1638 |
US $49.91 |
||
|
14073B
|
14073B
14073-1666
DUCT,AIR FILTER
|
14073-1666 |
— | ||
|
14090
|
14090
14090-1637
COVER,AIR FILTER
|
14090-1637 |
— | ||
|
16146
|
16146
16146-1179 COVER-ASSY |
16146-1179 |
US $77.42 |
||
|
49006
|
49006
49006-1292 BOOT |
49006-1292 |
from US $5.13 |
||
|
92003
|
92003
92003-199
BOLT,CLNR ELEMENT
|
92003-199 |
— | ||
|
92027
|
92027
92027-1651 COLLAR,FLANGED,L=12.1 |
92027-1651 |
from US $6.02 |
||
|
92037
|
92037
92171-0329 CLAMP |
92171-0329 |
from US $5.39 |
||
|
92075
|
92075
92075-222 DAMPER RUBBER,CASE |
92075-222 |
from US $4.12 |
||
|
92081
|
92081
92081-1638 SPRING,DUCT |
92081-1638 |
from US $6.81 |
||
|
92093
|
92093
92093-1322 SEAL,DUST |
92093-1322 |
from US $5.90 |
||
|
92093A
|
92093A
92093-1331 SEAL,AIR FILTER CASE |
92093-1331 |
US $3.76 |
||
|
92170
|
92170
92037-1586 CLAMP,RESERVE TANK |
92037-1586 |
from US $9.19 |
||
|
92170A
|
92170A
92170-1307 CLAMP |
92170-1307 |
from US $11.98 |
