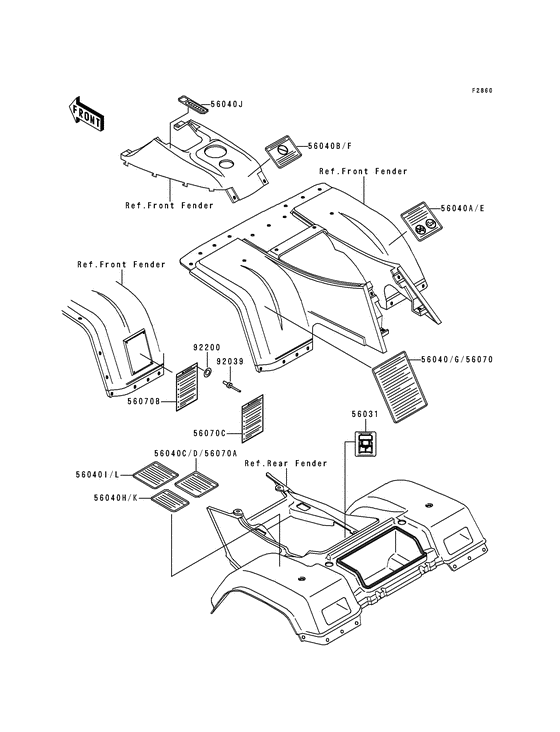

Labels Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B5
- Engine Capacity
- 391
- Year
- 1997
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56031
|
56031
56031-1806
LABEL-MANUAL,BATTERY
Label-manual,battery vent; |
56031-1806 |
— | ||
|
56040
|
56040
56040-1256 LABEL-WARNG,SROUS INJLabel-warning,serious injury; |
56040-1256 |
US $12.58 |
||
|
56040A
|
56040A
56040-1261 LABEL-WARNG,TRANSPORTLabel-warning,transport; |
56040-1261 |
US $3.23 |
||
|
56040B
|
56040B
56040-1276 LABEL-WARNINGLabel-warning,under 16; |
56040-1276 |
from US $4.83 |
||
|
56040C
|
56040C
56040-1277
LABEL-WARNING
Label-warning,no passenger; |
56040-1277 |
— | ||
|
56040D
|
56040D
56040-1280
LABEL-WARNING,NO PASS
Label-warning,no passenger; |
56040-1280 |
— | ||
|
56040E
|
56040E
56040-1283
LABEL-WARNING,TRANSPO
Label-warning,transport; |
56040-1283 |
— | ||
|
56040F
|
56040F
56040-1325 LABEL-WARNING,AGELabel-warning,age; |
56040-1325 |
from US $9.01 |
||
|
56040G
|
56040G
56040-1326 LABEL-WARNING,GENERALLabel-warning,general; |
56040-1326 |
US $2.23 |
||
|
56040H
|
56040H
56040-1330
LABEL-WARNING,TIRE IN
Label-warning,tire info; |
56040-1330 |
— | ||
|
56040I
|
56040I
56040-1331 LABEL-WARNING,MAX VEHLabel-warning,max vehicle load; |
56040-1331 |
from US $3.27 |
||
|
56040J
|
56040J
56040-1332 LABEL-WARNING,SHIFT PLabel-warning,shift pattern; |
56040-1332 |
US $4.25 |
||
|
56040K
|
56040K
56040-1337
Label-warning,tire info
Label-warning,tire info; |
56040-1337 |
— | ||
|
56040L
|
56040L
56040-1338
Label-warning,max vehicle load
Label-warning,max vehicle load; |
56040-1338 |
— |
