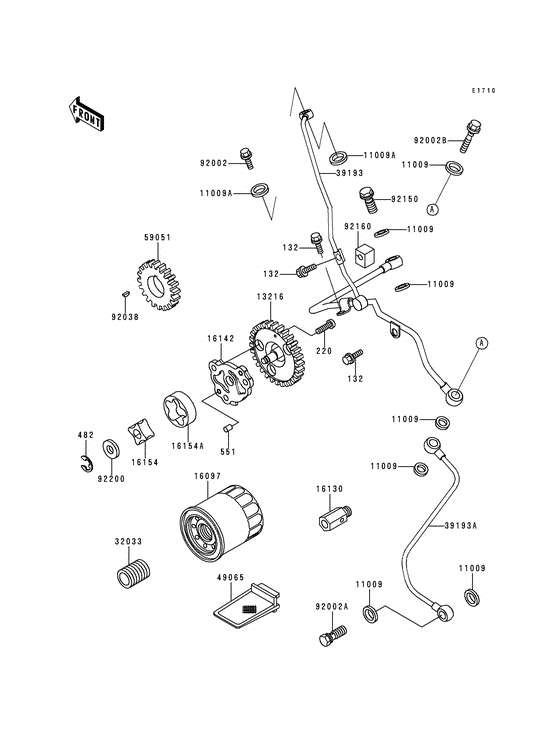

Oil pump/oil filter Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B5
- Engine Capacity
- 391
- Year
- 1997
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0612
BOLT-FLANGED-SMALL,6X
|
132G0612 |
— | ||
| replacement | |||||
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6X |
132BA0612 |
from US $0.79 |
||
|
220
|
220
220B0614
SCREW-PAN-CROS,6X14
Screw-pan-cros,6x14; |
220B0614 |
— | ||
| replacement | |||||
|
220
|
220
220AA0614 SCREW-PAN-CROS,6X14Screw-pan-cros,6x14; |
220AA0614 |
from US $0.95 |
||
|
482
|
482
482J6000 CIRCLIP-TYPE-E,6MMCirclip-type-e,6mm; |
482J6000 |
from US $1.05 |
||
|
551
|
551
551A0608 PIN,DOWEL,6X8Pin-dowel,6x8; |
551A0608 |
from US $2.38 |
||
|
11009
|
11009
11009-1105 GASKET,10X14.5X1.5Gasket,10x14.5x1.5; |
11009-1105 |
from US $4.75 |
||
|
11009A
|
11009A
11009-1344 GASKET,OIL PIPE,8.2X1Gasket,oil pipe,8.2x14x1.0; |
11009-1344 |
from US $3.33 |
||
|
13216
|
13216
13216-1133
GEAR-COMP,52T
Gear-comp,52t; |
13216-1133 |
— | ||
|
16097
|
16097
16097-1063
Filter-assy-oil
|
16097-1063 |
— | ||
| replacement | |||||
|
16097
|
16097
16097-0008 FILTER-ASSY-OILオイル |
16097-0008 |
from US $14.84 |
||
|
16130
|
16130
16130-1001
VALVE-ASSY-RELIEF
|
16130-1001 |
— | ||
| replacements | |||||
|
16130
|
16130
16130-0002 VALVE-ASSY-RELIEFリリ-フ |
16130-0002 |
from US $15.36 |
||
|
16130
|
16130
16130-0003 VALVE-ASSY-RELIEF,KL2 |
16130-0003 |
from US $26.60 |
||
|
16142
|
16142
16142-1118
COVER-PUMP
|
16142-1118 |
— | ||
|
16154
|
16154
16154-2059 ROTOR-PUMP-INNERRotor-pump,inner; |
16154-2059 |
from US $9.37 |
||
|
16154A
|
16154A
16154-2060 ROTOR-PUMP-OUTERRotor-pump,outer; |
16154-2060 |
from US $10.68 |
||
|
32033
|
32033
32033-1535 PipePipe,oil filter; |
32033-1535 |
from US $9.19 |
||
|
39193
|
39193
39193-1008 PIPE-OIL,HEAD-CASEPipe-oil,head-case; |
39193-1008 |
US $101.56 |
||
|
39193A
|
39193A
39193-1009 PIPE-OIL,PARTICULARPipe-oil,particular; |
39193-1009 |
US $39.29 |
||
|
49065
|
49065
49065-1070 FILTER-OIL |
49065-1070 |
from US $12.60 |
||
|
59051
|
59051
59051-1255 GEAR-SPUR,PUMP,30TGear-spur,pump,30t; |
59051-1255 |
US $72.90 |
||
|
92002
|
92002
92002-1429 BOLT,BANJO,8X20Bolt,banjo,8x20; |
92002-1429 |
from US $7.44 |
||
|
92002A
|
92002A
92002-1888
BOLT,OIL,L=23
Bolt,oil,l=23; |
92002-1888 |
— | ||
| replacement | |||||
|
92002A
|
92002A
92153-0627 BOLT,OIL,L=23Bolt,oil,l=23; |
92153-0627 |
from US $2.85 |
||
|
92002B
|
92002B
92002-1909 BOLT,OIL,L=37Bolt,oil,l=37; |
92002-1909 |
from US $7.76 |
||
| replacement | |||||
|
92002B
|
92002B
92153-0628 BOLT,OIL,L=37Bolt,oil,l=37; |
92153-0628 |
from US $6.65 |
||
|
92038
|
92038
92038-1056 KEY |
92038-1056 |
from US $3.57 |
||
|
92150
|
92150
92150-1123 BOLT,BANJO,10X23Bolt,banjo,10x23; |
92150-1123 |
from US $9.54 |
||
| replacement | |||||
|
92150
|
92150
92151-1349 BOLT,BANJO,10X23Bolt,banjo,10x23; |
92151-1349 |
from US $3.64 |
||
|
92160
|
92160
92160-1522 DAMPER |
92160-1522 |
US $4.77 |
||
|
92200
|
92200
92200-1107 WASHER,7.7X13X1.0Washer,7.7x13x1.0; |
92200-1107 |
from US $2.69 |
||
