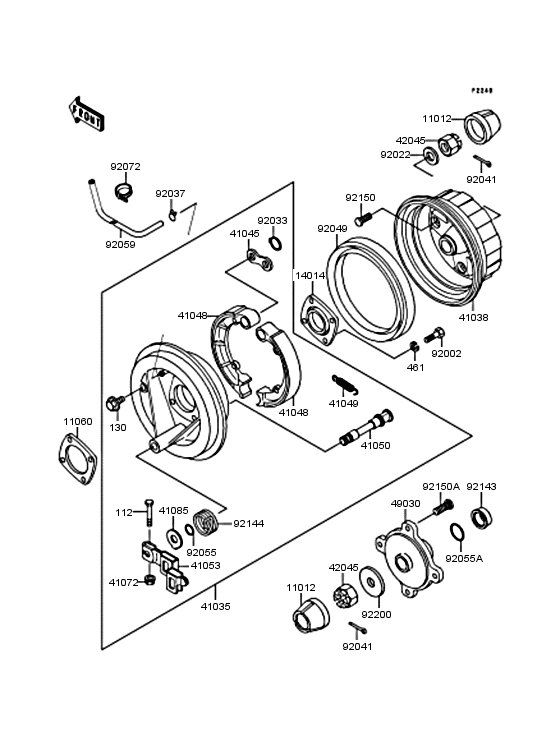

Rear wheel/chain Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B5
- Engine Capacity
- 391
- Year
- 1997
- Sales region
- Canada
- Colour
- Colored Plastic Forest Bluish Green (59)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112H0640 BOLT-UPSETボルト(アプセツト) |
112H0640 |
US $3.04 |
||
| replacement | |||||
|
112
|
112
112BA0640 BOLT-UPSETボルト(アプセツト) |
112BA0640 |
from US $1.09 |
||
|
130
|
130
130B1012 BOLT-FLANGED,10X12ボルト(ツバツキ)，10X12 |
130B1012 |
US $3.60 |
||
| replacement | |||||
|
130
|
130
130AA1012 BOLT-FLANGED,10X12ボルト(ツバツキ)，10X12 |
130AA1012 |
from US $1.24 |
||
|
461
|
461
461F1000 WASHER SPRING 10MMバネザガネ，10MM |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
461
|
461
461DA1000 WASHER-SPRINGバネザガネ，10MM |
461DA1000 |
from US $0.90 |
||
|
11012
|
11012
11012-1969 CAP,WHEELキヤツプ，ホイ-ル |
11012-1969 |
from US $5.33 |
||
|
11060
|
11060
11060-1561 GASKETガスケツト |
11060-1561 |
from US $4.67 |
||
|
14014
|
14014
14014-1072 PLATE-POSITIONプレ-ト(ポジシヨン) |
14014-1072 |
from US $11.98 |
||
|
41035
|
41035
41035-1305 PANEL-ASSY-BRAKE,RR,Rパネルアツシ(ブレ-キ)，RR，RH |
41035-1305 |
from US $465 |
||
|
41038
|
41038
41038-1202 DRUM,REAR BRAKEドラム，リヤ ブレ-キ |
41038-1202 |
from US $241.06 |
||
|
41045
|
41045
41045006 WASHER-BRAKE SHOEワツシヤ(ブレ-キシユ-) |
41045006 |
from US $3.89 |
||
|
41048
|
41048
41048-1082 SHOE-BRAKEシユ-(ブレ-キ) |
41048-1082 |
from US $64.68 |
||
|
41049
|
41049
41049012 SPRING,BRAKE SHOEスプリング(ブレ-キシユ-)，ブレ-キ シユ- |
41049012 |
from US $7.13 |
||
|
41050
|
41050
41050-1077 CAM-BRAKEカム(ブレ-キ) |
41050-1077 |
from US $43.70 |
||
|
41053
|
41053
41053-1078 LEVER-BRAKE CAMレバ-(ブレ-キカム) |
41053-1078 |
from US $35.45 |
||
|
41072
|
41072
41072007 NUT,6MMナツト，6MM |
41072007 |
from US $2.85 |
||
|
41085
|
41085
41085-1062 INDICATORインデイケ-タ |
41085-1062 |
from US $9.79 |
||
|
42045
|
42045
42045018 NUT CASTLE,18MMナツト，18MM |
42045018 |
from US $7.76 |
||
|
49030
|
49030
49030-1111 HUB,RR,LHハブ，RR，LH |
49030-1111 |
US $139.86 |
||
|
92002
|
92002
92002-1918 BOLTボルト，10X30 |
92002-1918 |
from US $3.57 |
||
|
92022
|
92022
92022-1658 WASHER,18.3X34X4.5ワツシヤ，18.3X34X4.5 |
92022-1658 |
from US $3.17 |
||
|
92033
|
92033
92033-1250 RING-SNAP,15MMリング(スナツプ)，15MM |
92033-1250 |
from US $2.95 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERクランプ，チユ-ブ |
92037-147 |
from US $4.95 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35コツタ，4.0X35 |
92041-1053 |
from US $2.33 |
||
|
92049
|
92049
92049-1312 SEAL-OIL,SD07 190 225シ-ル(オイル)，SD07 190 225 16 NS |
92049-1312 |
from US $74.65 |
||
|
92055
|
92055
92055-1376 RING-Oリング(0)，ID=16.4 |
92055-1376 |
from US $5.93 |
||
|
92055A
|
92055A
92055-1459 RING-O,ID=24.5リング(0)，ID=24.5 |
92055-1459 |
from US $2.85 |
||
|
92059
|
92059
92059-1968 TUBE 5X9X1240チユ-ブ，4.7X9.5X1240 |
92059-1968 |
from US $19.33 |
||
|
92072
|
92072
92072-1239 BAND,L=188バンド，L=188 |
92072-1239 |
from US $1.90 |
||
|
92143
|
92143
92143-1585
COLLAR
カラ- |
92143-1585 |
— | ||
|
92144
|
92144
92144-1365 SPRINGスプリング |
92144-1365 |
from US $7.16 |
||
|
92150
|
92150
92150-1110 BOLTボルト，10MM |
92150-1110 |
from US $3.27 |
||
|
92150A
|
92150A
92150-1289 BOLTボルト |
92150-1289 |
from US $3.11 |
||
|
92200
|
92200
92200-1139 WASHER,18.5X52X4.5ワツシヤ，18.5X52X4.5 |
92200-1139 |
US $6.80 |
||
| replacement | |||||
|
92200
|
92200
92200-1474 WASHER,18.5X52X4.5ワツシヤ，18.5X52X4.5 |
92200-1474 |
from US $4.67 |
||
