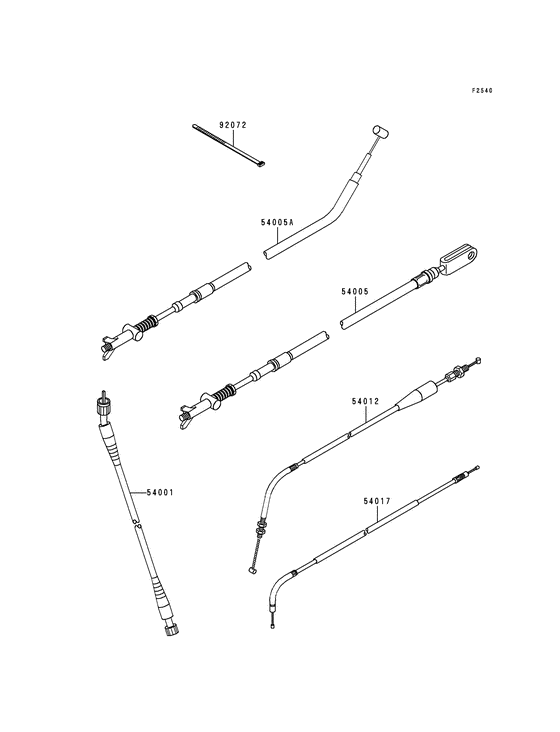

Cables Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54001
|
54001
54001-1211
CABLE-SPEEDOMETER
|
54001-1211 |
— | ||
|
54005
|
54005
54005-1169 CABLE-BRAKE,FOOTCable-brake,foot; |
54005-1169 |
from US $27.70 |
||
|
54005A
|
54005A
54005-1170 CABLE-BRAKE,PARKINGCable-brake,parking; |
54005-1170 |
from US $49.25 |
||
|
54012
|
54012
54012-1436 CABLE-THROTTLE |
54012-1436 |
from US $9.72 |
||
|
54017
|
54017
54017-1111 CABLE-STARTER |
54017-1111 |
US $12.39 |
||
|
92072
|
92072
92072-1239 BAND,L=188Band,l=188; |
92072-1239 |
from US $1.90 |
